Technical Values

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 Porsche Panamera, 2022 Porsche Panamera, 2021 Porsche Panamera, 2020 Porsche Panamera, and 2019 Porsche Panamera. However, it is still accessible from the selected car via links, so may be relevant.

*Location	*Des...	*Type	*Basic val...
Front PDCC (EAWS) control unit to holder	Item 3: Internal hexagon roundhead bolt, M5	Tightening torque	5.6 Nm (4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. PDCC (EAWS) control unit to holder
Ground line to front PDCC (EAWS) control unit	Item 1: Internal hexagon roundhead bolt, M5	Tightening torque	5.6 Nm (4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Disconnecting ground lines
Front PDCC (EAWS) control unit holder to body	Item 4: Hexagon-head bolt, M6 x 16	Tightening torque	8 Nm (6 ftlb.)

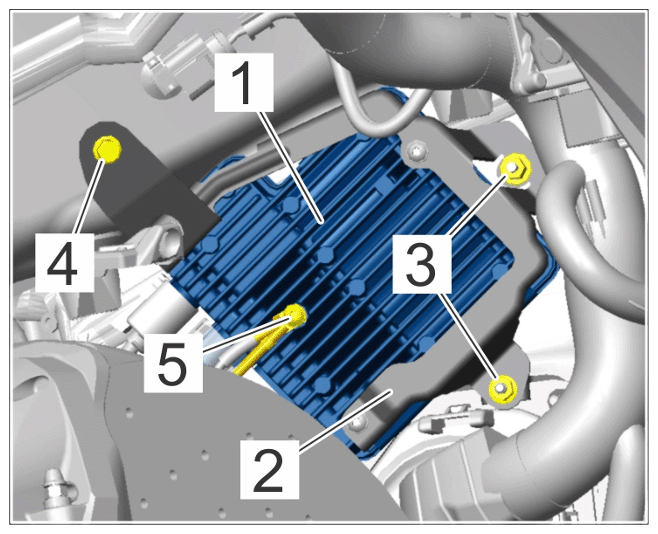

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Control unit holder
Front PDCC (EAWS) control unit holder to body	Plastic nut	Tightening torque	2.5 Nm (1.75 ftlb.)
Front PDCC (EAWS) control unit holder to adapter holder and body	Item 3: Hexagon nut, M6	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Control unit holder
Rear PDCC (EAWS) control unit to holder	Item 2: Internal hexagon roundhead bolt, M5	Tightening torque	5.6 Nm (4 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear PDCC control unit to holder
Ground line to rear PDCC (EAWS) control unit	Item 5: Internal hexagon roundhead bolt, M5	Tightening torque	5.6 Nm (4 ftlb.)

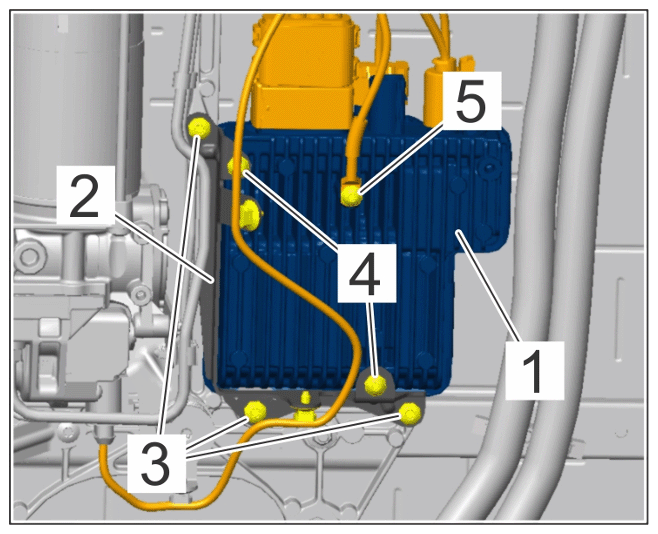

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Control unit holder to air supply system holder
Rear PDCC (EAWS) control unit holder to air supply system holder	Item 3: Internal hexagon roundhead bolt, M6 x 16	Tightening torque	8 Nm (6 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Control unit holder to air supply system holder
