Removing Roof Trim Panel

Fold backrests forward.
Move front seats all the way forward and tilt them to the rear.

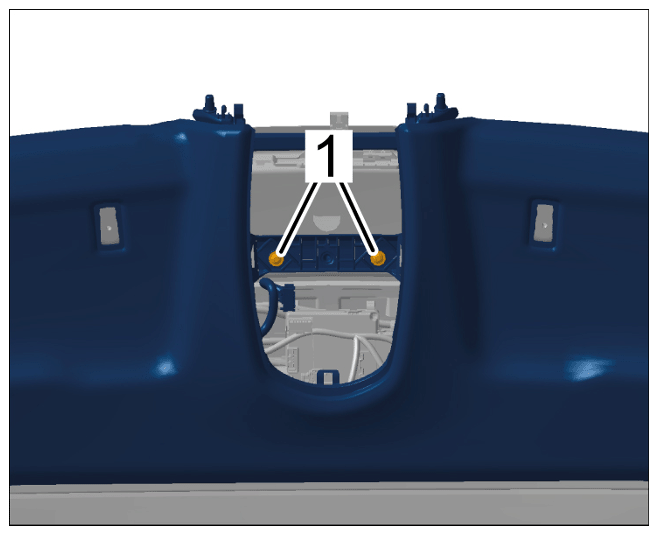

Unscrew screws -1- at the front.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front screws
Only for vehicles with electric glass slide/tilt roof (I-no. 3FE)
Release and disconnect electric plug connections on sliding roof control unit.

> WM, 606519 REMOVING AND INSTALLING CONTROL UNIT FOR SUN BLIND

Information

The help of another person is required.
Only for vehicles with electric glass slide/tilt roof (I-no. 3FE)

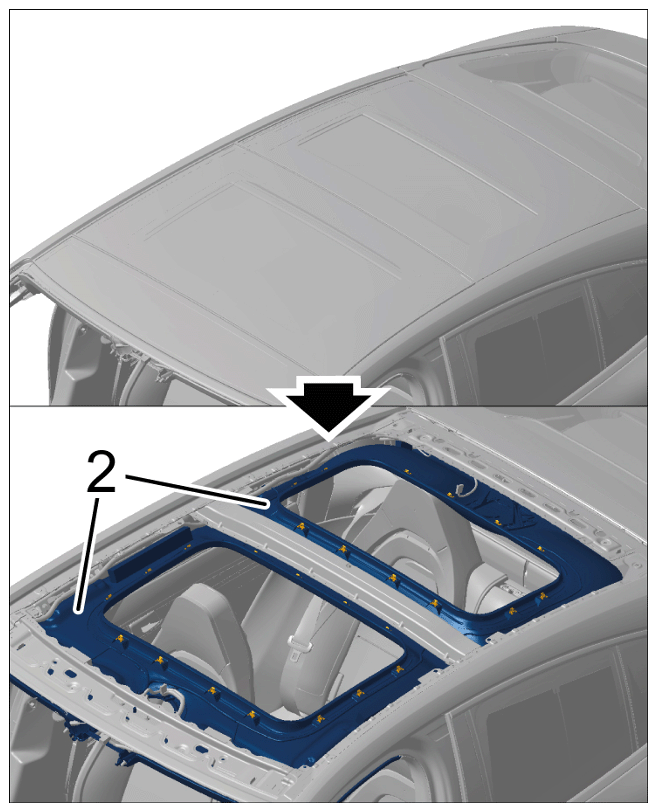

Unclip headliner -2- in the sliding roof cut-out area.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Headliner

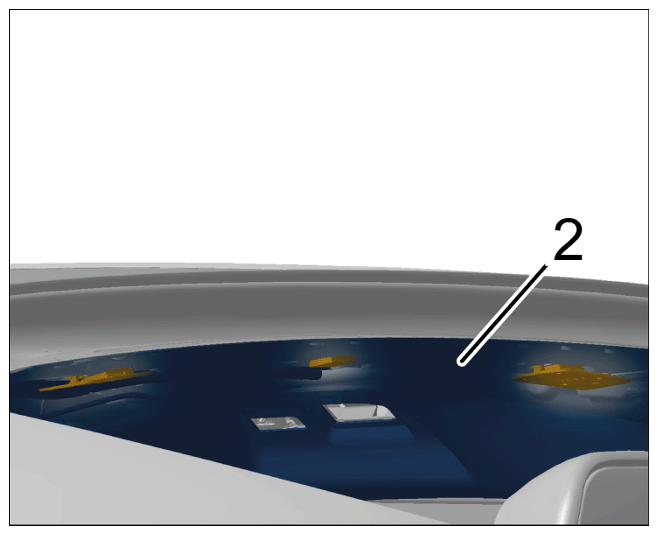

Unclip rear roof trim panel -2- and loosen Velcro fasteners.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear roof trim panel

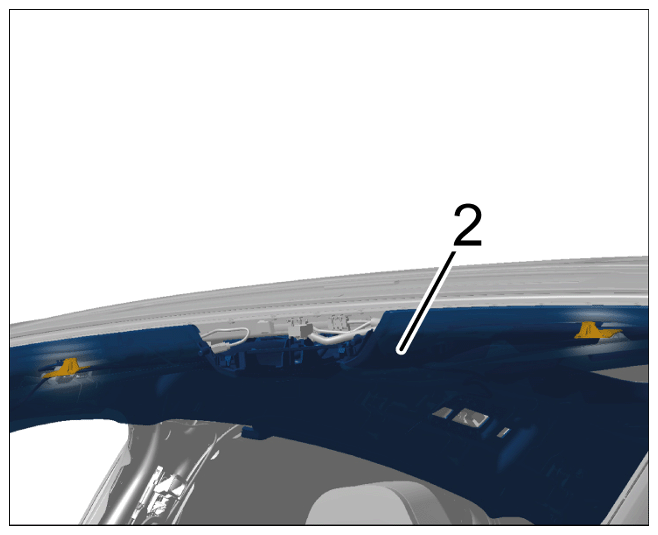

Unclip roof trim panel -2- at the front.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front roof trim panel

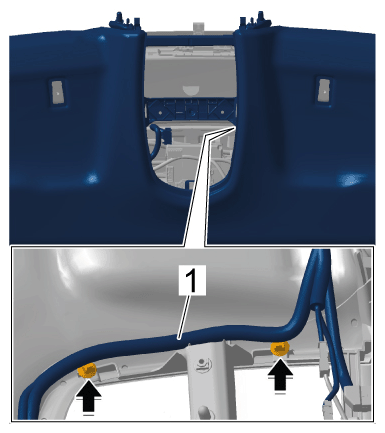

Unclip electric wire harness -1- (-arrows- ).
Release and remove electric line for reading light.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness

Information

Make sure that the roof trim panel does not buckle.
Remove roof trim panel by pulling it forward.
