Home >> Porsche >> 2017 >> Panamera Turbo >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> 70 Linings, Insulation - Coupe -- 971 - PANAMERA (971) >> WM, 70831910 Removing And Installing Front Roof Console (SOS Button) >> Technical Values

Technical Values

Location Descri... Type Basic value Tolerance 1 Tolerance 2
Screw for front roof console (SOS button) Item 1 Tightening torque 1.2 Nm (0.9 ftlb.)

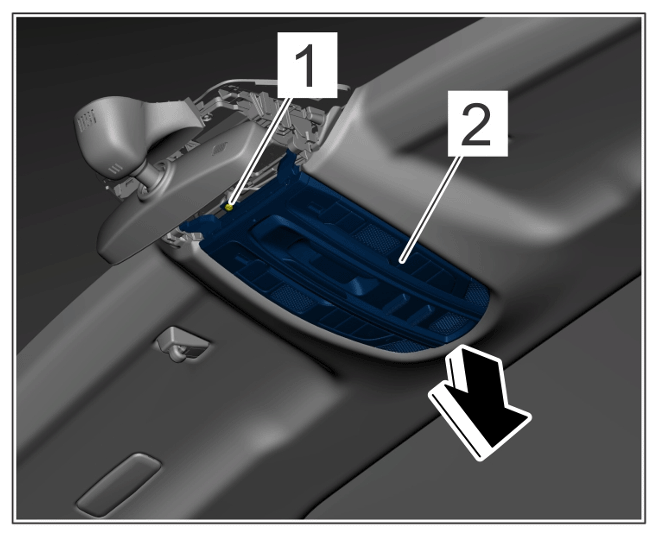

G15873714Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front roof console (emergency button)
