Removing (Lower Part Of) C-Pillar Trim Panel

Information

To prevent damage, use a suitable tool as a support during removal at accessible connection points.

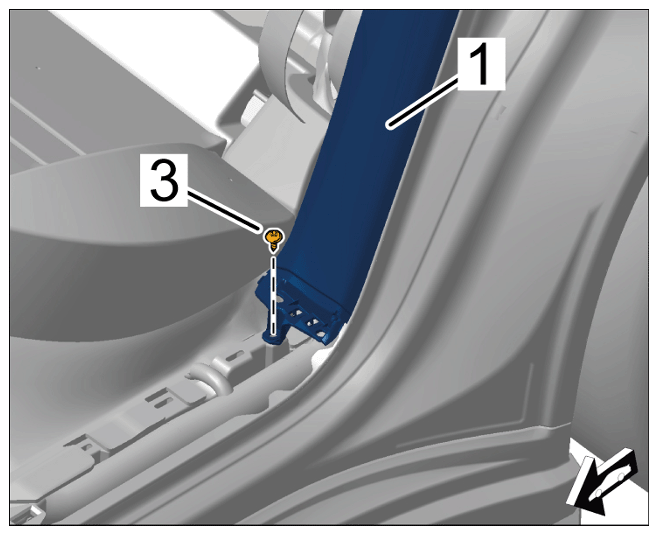

1. Unscrew screw -3-  on (lower part of) C-pillar trim panel -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unscrewing screw

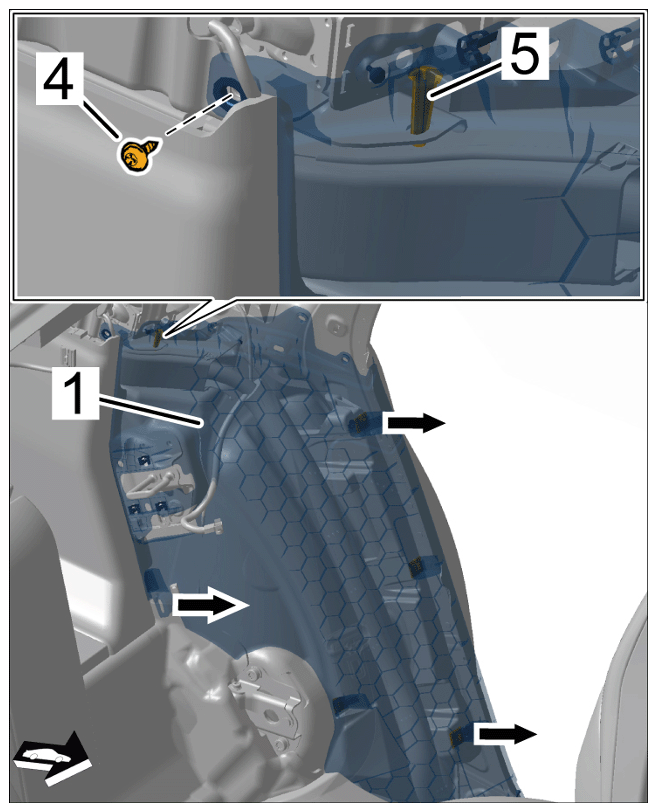

2. Unscrew screw -4-  on (lower part of) C-pillar trim panel -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Unscrewing screw

3. Unclip (lower part of) C-pillar trim panel -1-  at the sides -arrows-  , disengage guide -5-  at the top and remove (lower part of) C-pillar trim panel -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing (lower part of) C-pillar trim panel
