Installing Upper Part Of B-Pillar Trim Panel

Information

Check whether clips are bent or broken.

Check that all clips are positioned fully and correctly.

Replace missing and damaged clips with new clips.

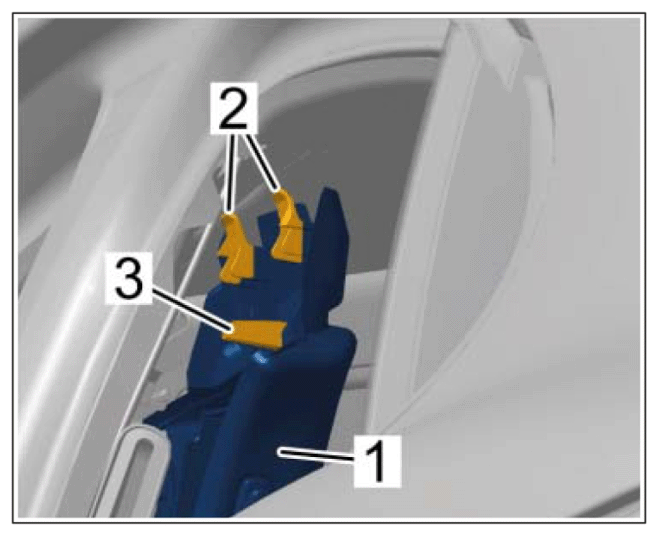

1. Swivel in upper part of B-pillar trim panel -1-  and make sure that the guide lugs -2 and 3-  are positioned correctly.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Swivelling in upper part of B-pillar trim panel

2. The remaining installation steps are performed in reverse order.
