Removing Insulation For Front Lid

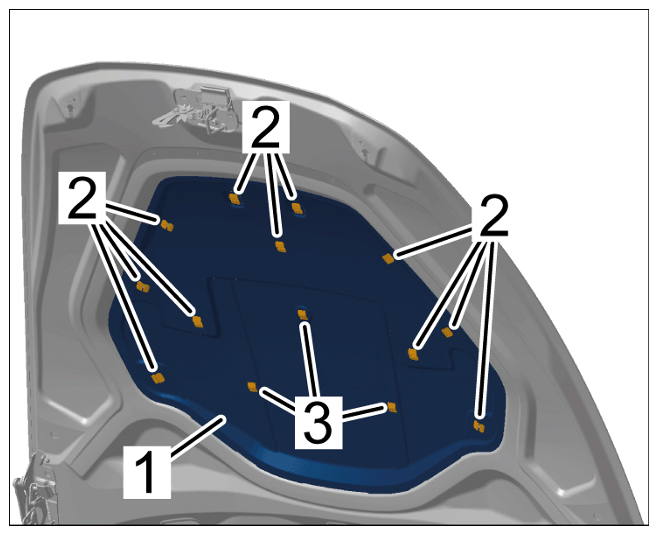

  1. Press clips -2-  together and pull them out.
    G15873572Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pulling out clips

  2. Unclip clips -3-  and remove insulation for front lid -1-  .
    G15873573Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing insulation for front lid
