Installing ATF Pan

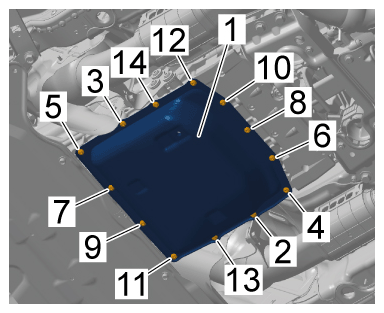

Fig 1: ATF Pan Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Installing ATF pan

1. 2.1 Clean sealing face on the ATF pan.
2. 2.2 Replace seal on ATF pan -1-  .
3. 2.3 Fit ATF pan -1-  .
4. 2.4 Screw in and tighten new  screws in the specified sequence -2 to 14-  .

   > Initial tightening 3 Nm (2 ftlb.)

   > Torque angle 60°
