Installing Selector Knob

  1. Fit selector knob and position the sliding covers -4-  (-arrows-  ).

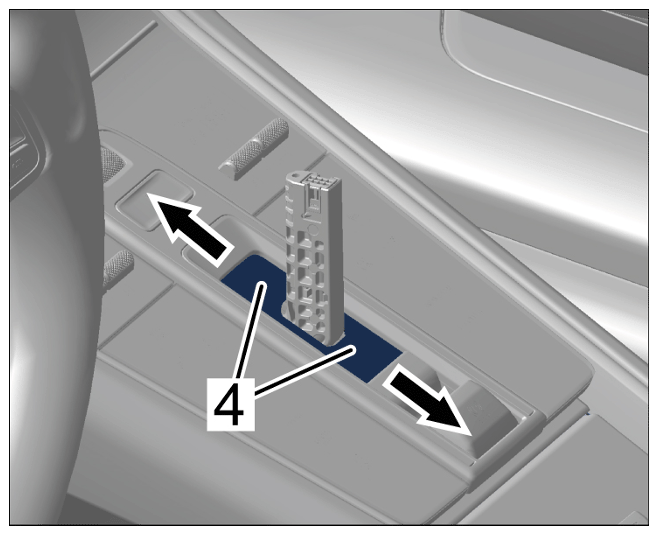

    G15888037Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Positioning sliding covers

  2. Screw in and tighten screw > Tightening torque 2.5 Nm (1.75 ftlb.)
  3. The remaining installation steps are performed in reverse order.
