Technical Values

Location	Des...	Type	Basic val...
Pressure accumulator to body	Item 2: Hexagon-head bolt, M6 x 16/observ e installation sequence for screws 1-3!	Tightening torque	8 Nm (6 ftlb.)

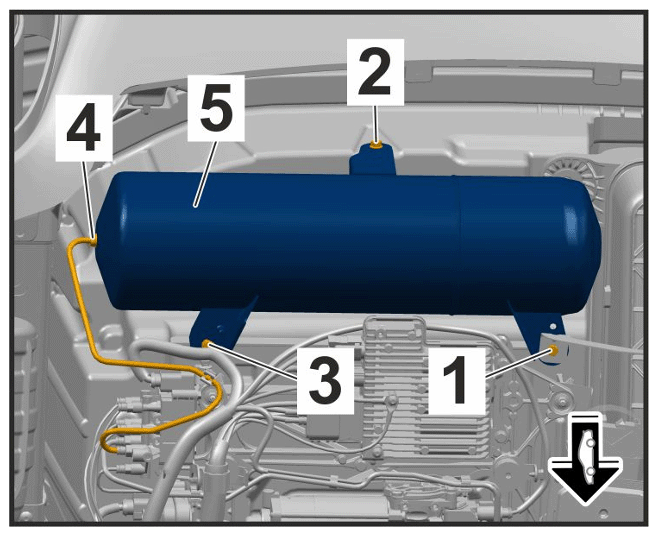

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for pressure accumulator
Pressure accumulator air line	Item 4: Union nut	Tightening torque	5 Nm (3.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for pressure accumulator, conventional
