43 Leveling System, Air Suspension, Damper Control 3.0L Turbo -- 971 - PANAMERA (971)
>>
WM, 436637 Disassembling And Assembling Rear Spring Damper
>>
Installation Position
>>
Installation Position Of Rear Spring Damper
Installation Position Of Rear Spring Damper

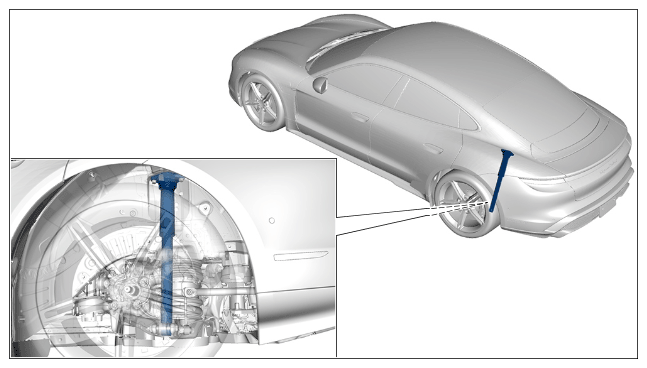

Fig 1: Identifying Rear Spring Damper Installation Position
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Installation location of shock absorber/spring damper
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
