Disassembling Spring Damper

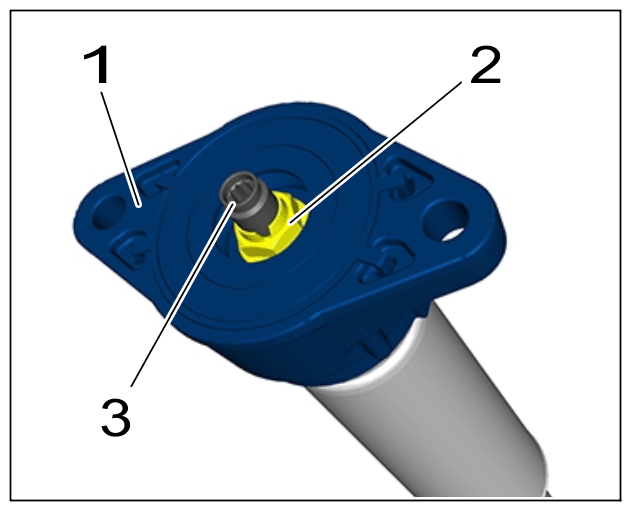

Remove the -1- shock absorber mounting.
1. 1.1 Unscrew -2- nut using > T10001 - the shock absorber set while at the same time holding back the multiple-tooth screw of the piston rod -3- .
2. 1.2 Remove shock absorber mount -1- from piston rod -3- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Shock absorber mounting

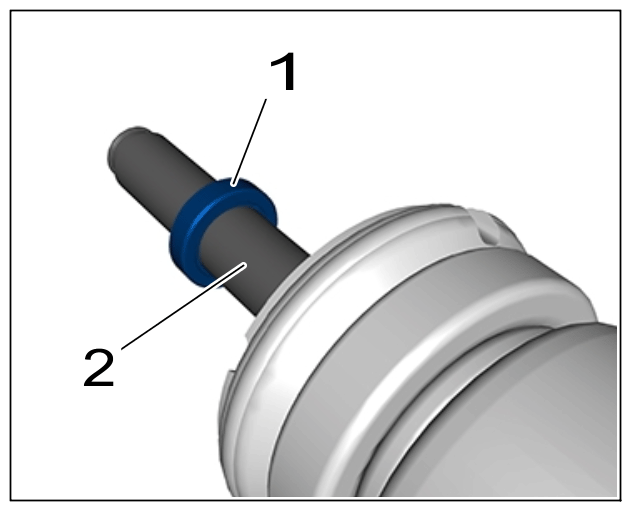

Pull supporting washer -1- from piston rod -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Support washer

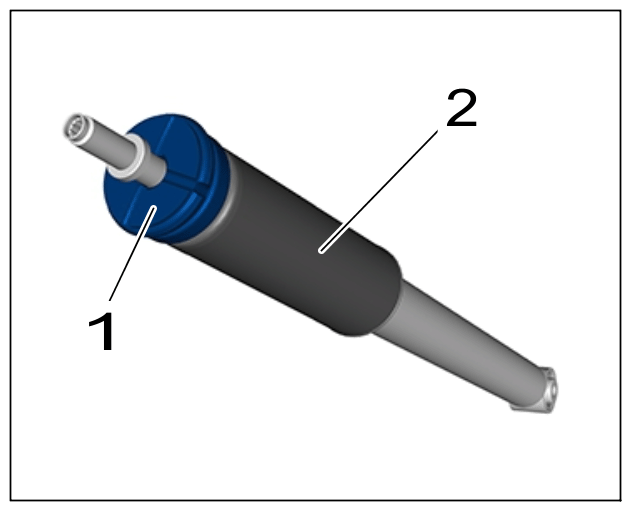

Remove stop buffer -1- and protective sleeve -2- .
1. 3.1 Pull stop buffer -1- with protective sleeve -2- from the piston rod.
2. 3.2 Pull stop buffer -1- from protective sleeve -2- .
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Stop buffer and protective sleeve
