Component Overview

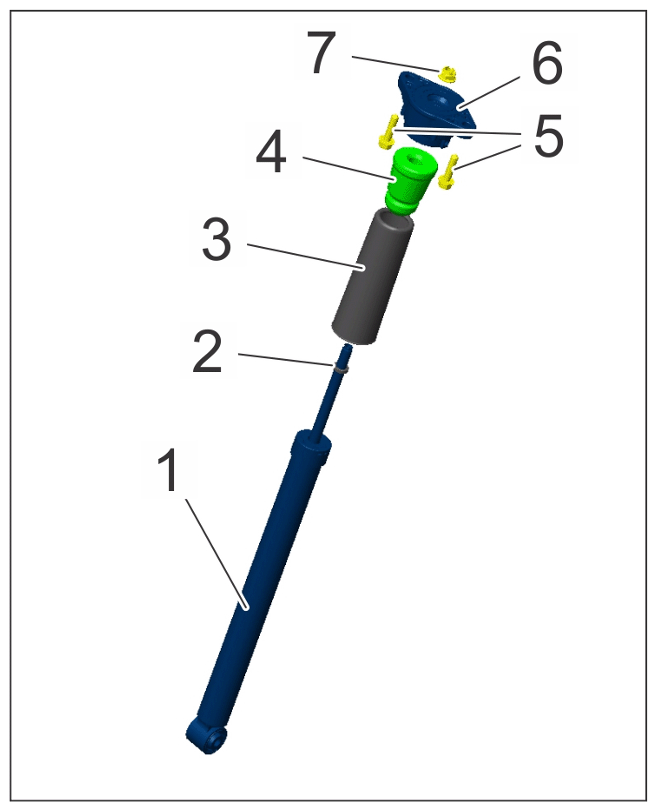

Fig 1: Rear Shock Absorber/Spring Damper Components Location
G15856806Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Individual components of rear shock absorber/spring damper

1 Spring damper/shock absorber
2 Support washer
3 Boot
4 Rubber stop
5 Screws, M10 x 42
6 Shock absorber mounting
7 Nut, M14
