Technical Values

*Location	*Des...	*Type	*Basic val...
Trailing arm to rear axle housing, front	Hexagon-head bolt, M12 x 1.5 x 120 and hexagon nut/always replace bolts and nuts following removal!	Initial tightening	70 Nm (52 ftlb.)
Trailing arm to rear axle housing, front	Hexagon-head bolt, M12 x 1.5 x 120 and hexagon nut/always replace bolts and nuts following removal!	Final tightening torque angle	+ 180°
Trailing arm to rear axle housing, rear (camber eccentric adjuster)	Eccentric screw, M14 x 1.5 with eccentric washer and hexagon nut	Tightening torque	160 Nm (118 ftlb.)
Shock absorber/spring damper to body	Item 2: Hexagon-head bolt M10 x 42	Tightening torque	50 Nm (36.9 ftlb.)

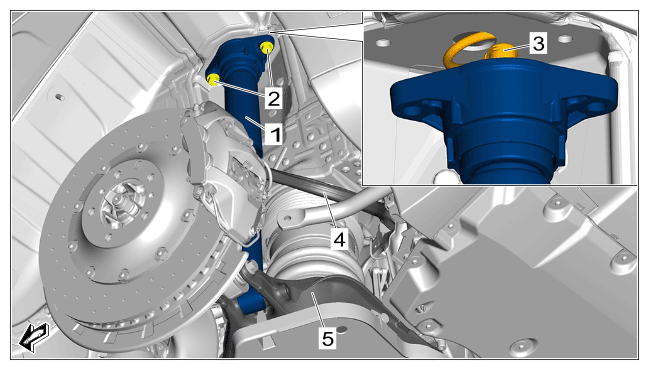

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear shock absorber/spring damper
Rear upper control arm to wheel bearing housing	Hexagon-head bolt, M12 x 1.5 x 75 and hexagon nut/always replace bolts and nuts following removal!	Initial tightening	70 Nm (52 ftlb.)
Rear upper control arm to wheel bearing housing	Hexagon-head bolt, M12 x 1.5 x 75 and hexagon nut/always replace bolts and nuts following removal!	Final tightening torque angle	+ 90°
Screw securing holder for rear angle sensor for headlight beam adjustment to trailing arm	Item 1/always replace screws following removal!	Initial tightening	3 Nm (2 ftlb.)
Screw securing holder for rear angle sensor for headlight beam adjustment to trailing arm	Item 1/always replace screws following removal!	Final tightening	+ 45°

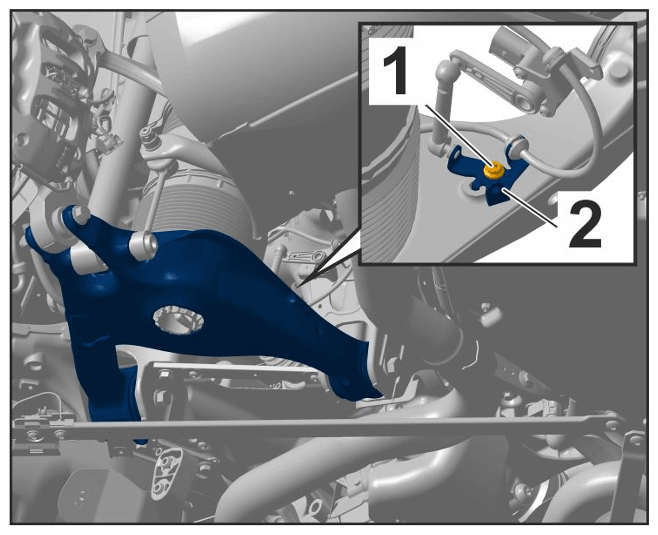

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screw securing holder for rear angle sensor for headlight beam adjustment to trailing arm
