Installation Position

A total of eight body sensors are installed in the vehicle.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

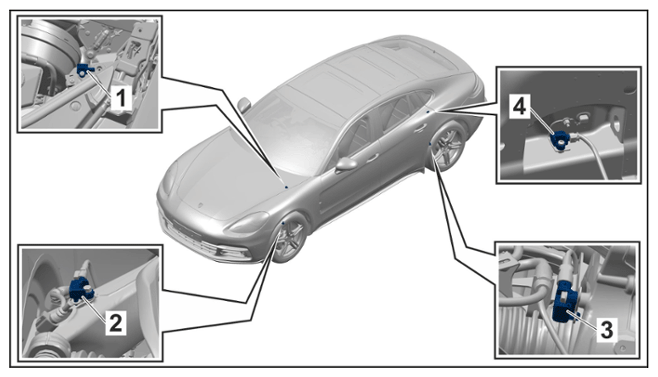

Installation position

1. In the plenum panel (under cowl panel cover)

   > WM, 508719 REMOVING AND INSTALLING COWL PANEL COVER

2. On the front wheel bearing housing
3. On the rear wheel bearing housing
4. In the luggage compartment (behind the side trim panel)

   > 700319 REMOVING AND INSTALLING SIDE TRIM PANEL FOR REAR LUGGAGE COMPARTMENT
