Disassembling And Assembling Front Air-Spring Strut

Information

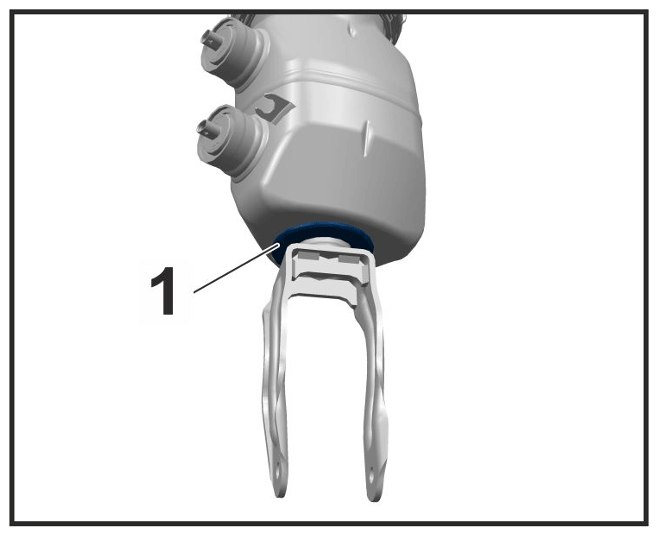

The spring plate -1-  can become detached from the suspension cylinder when depressurized.

This is not critical as the suspension cylinder will be attached again when filling the air spring.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Spring plate

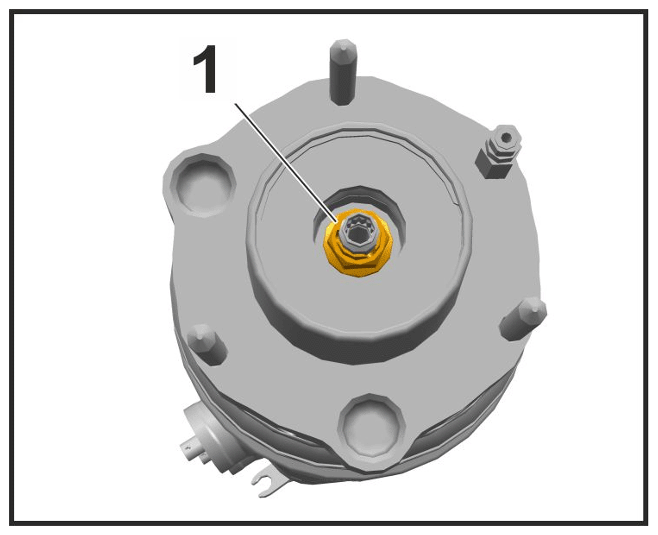

1. Unscrew nut -1-  from the air-spring strut using > T10001 - shock absorber set  . Counter using multiple-tooth screw on the piston rod at the same time.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for air spring on shock absorber

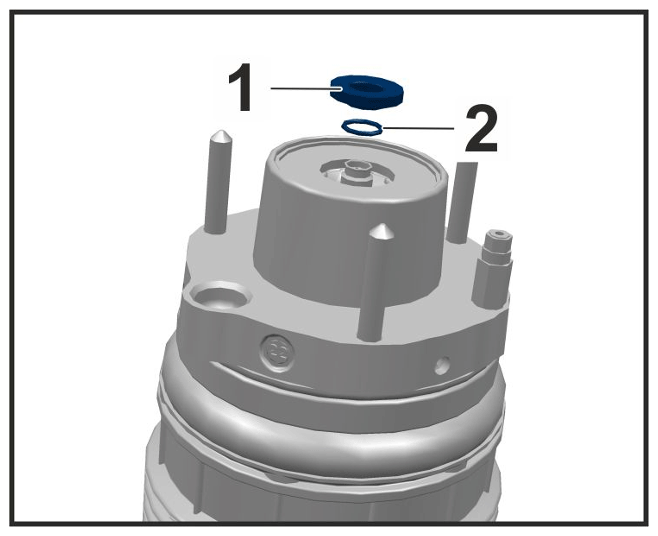

2. Remove press-on plate -1-  and O-ring -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Press-on plate and O-ring

3. Carefully lever out the spring plate -1-  using a small screwdriver.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Spring plate

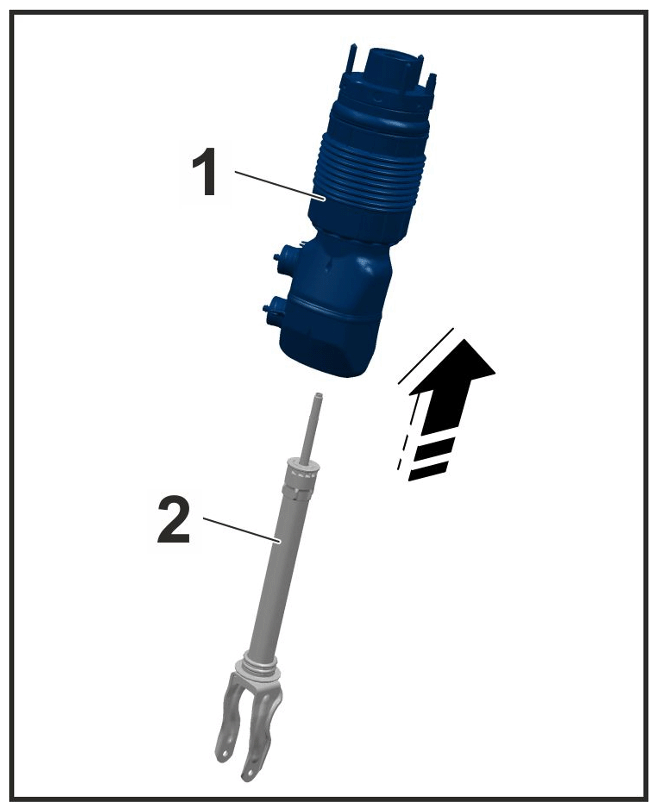

4. Carefully lift suspension cylinder -1-  off the shock absorber -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Lifting off suspension cylinder

   Information

   Do not damage/scratch the shock absorber pipe and piston rod.

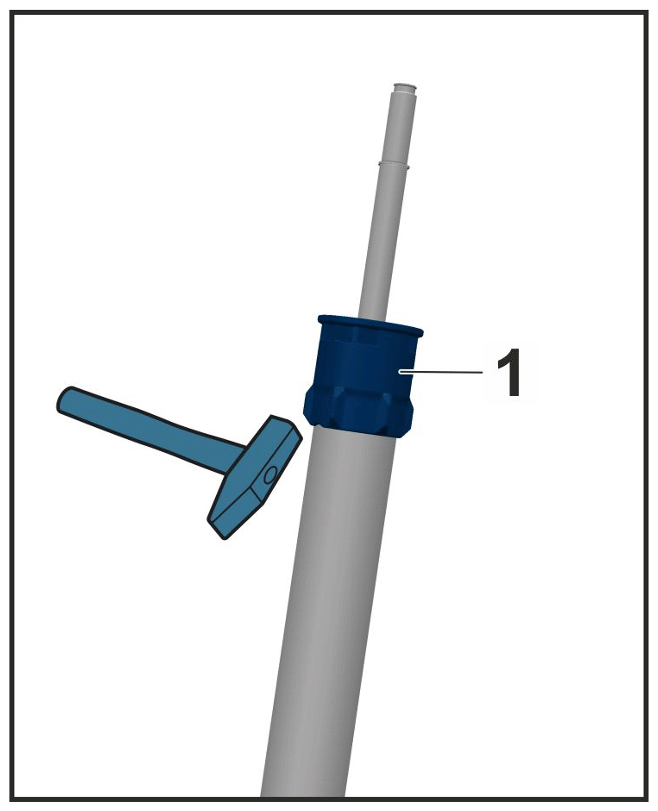

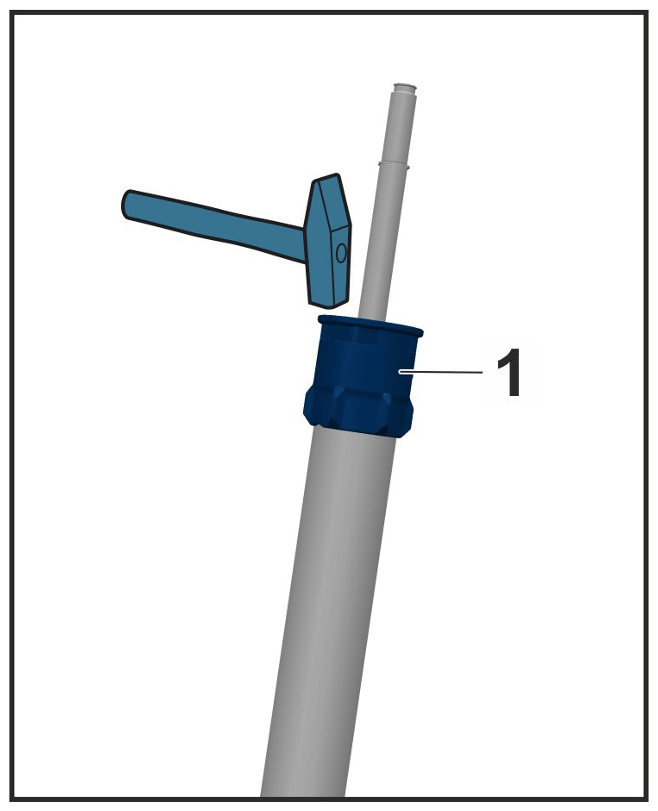

5. Carefully remove the shock absorber cap -1-  from the shock absorber using a plastic hammer.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Removing shock absorber cap

   WARNING: High pressure can cause the piston rod to become detached from the shock absorber pipe.

   • Risk of injury or bruising

     → Do not reach into the piston rod area.

     → Dispose of shock absorber immediately.

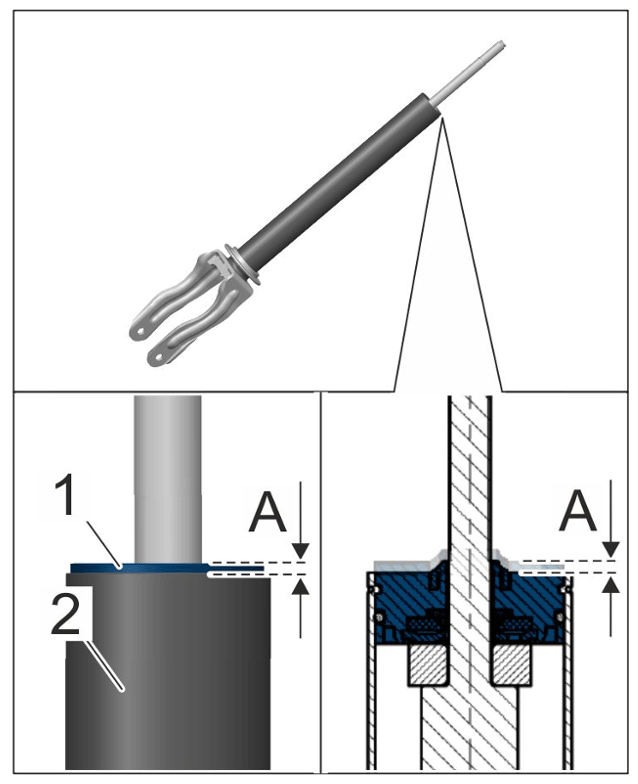

6. Check projection -A-  of shock absorber guide unit -1-  with respect to the shock absorber pipe -2-  .
   • If projection -A-  < 1 mm, the shock absorber can be re-used.
   • If projection -A-  >= 1 mm, dispose of the shock absorber immediately and replace it. High pressure can cause the piston rod including shock absorber guide unit -1-  to become detached from the shock absorber pipe -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Projection of shock absorber guide unit

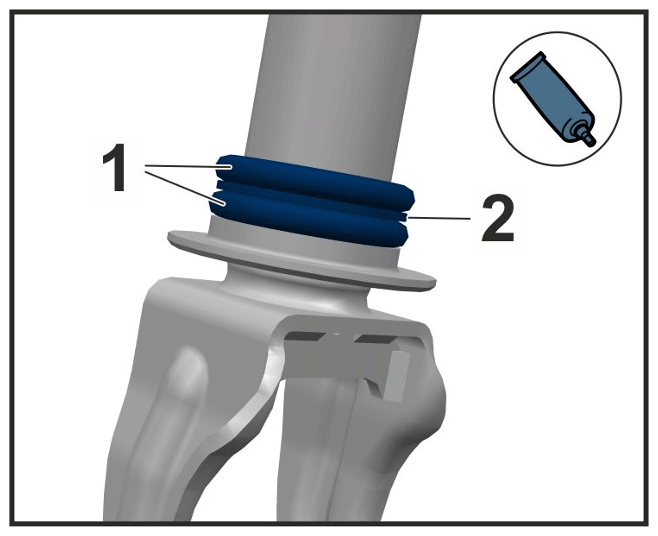

7. Replace O-rings -1-  and support ring -2-  . Coat O-rings -2-  with assembly grease "Synthesis Glep 1".

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   O-rings and support ring

   Information

   Do not damage/scratch the shock absorber pipe and piston rod.

   Information

   Do not fit the stop cap at an angle!

8. Carefully fit the shock absorber cap -1-  on the shock absorber using a plastic hammer.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fitting shock absorber cap

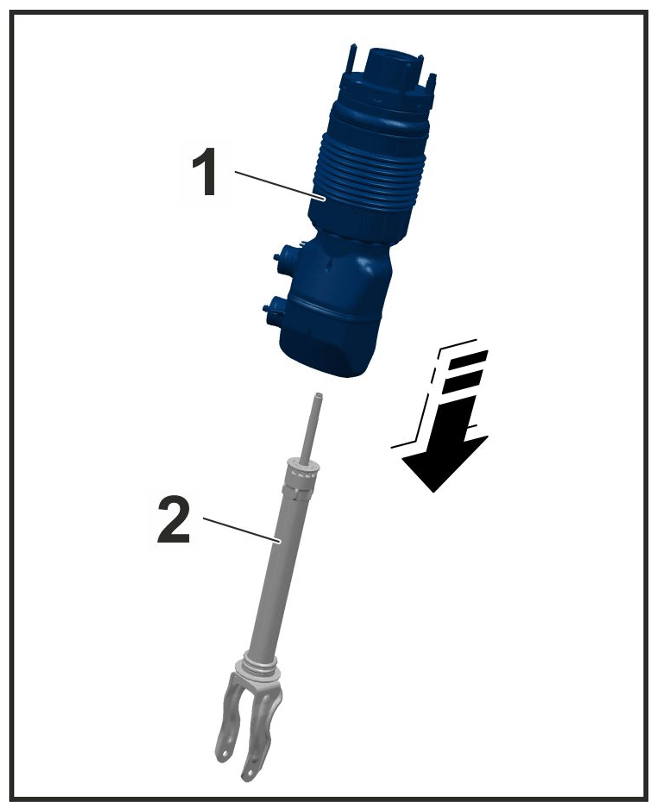

9. Carefully fit suspension cylinder -1-  on the shock absorber -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fitting suspension cylinder

10. Fit new O-ring -2-  between supporting mount and piston rod and fit press-on plate -1-  .

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Press-on plate and O-ring

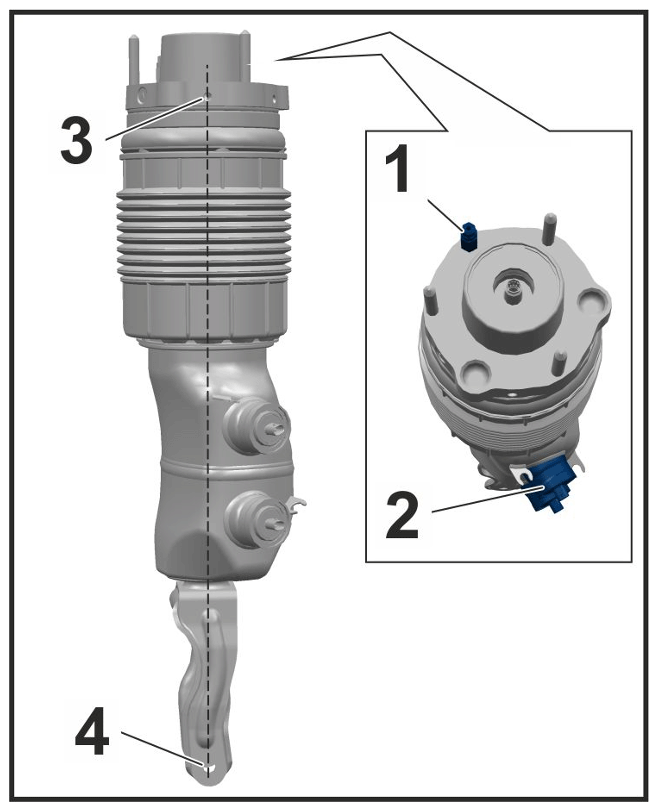

11. Align suspension cylinder with the shock absorber.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Aligning suspension cylinder with shock absorber

    1. 11.1 The air connection -1-  must be on the opposite side of the electric connections -2-  .
    2. 11.2 The bore -3-  on the supporting mount must be flush with the bore -4-  in the shock absorber fork.
12. Tighten nut -1-  using > T10001 - shock absorber set  > Tightening torque 55 Nm (41 ftlb.)  . Counter using multiple-tooth screw on the piston rod at the same time.

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for air spring on shock absorber
