Installing Front Air-Spring Strut

Information

To prevent damage to the air springs, pay particular attention to the following points when handling air springs:

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

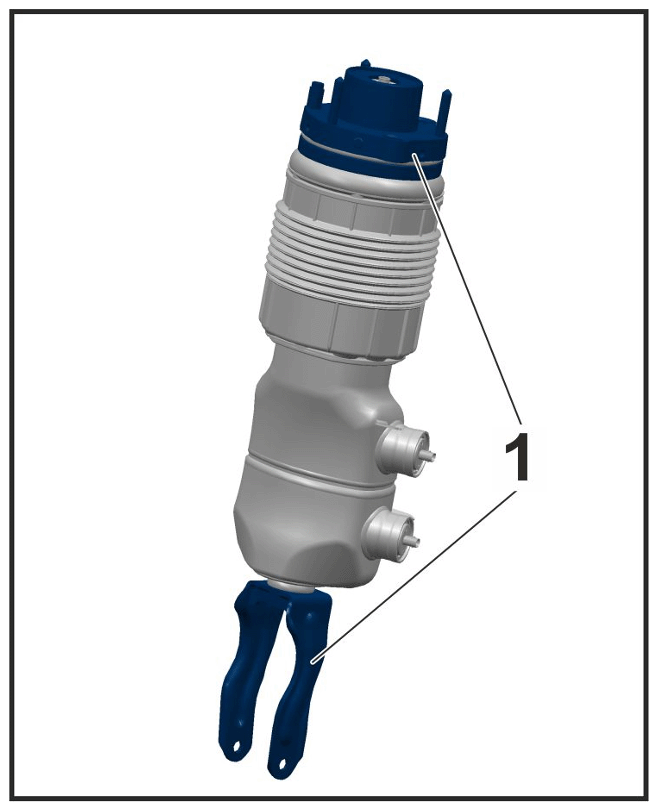

Supporting the air-spring strut only at the marked positions

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

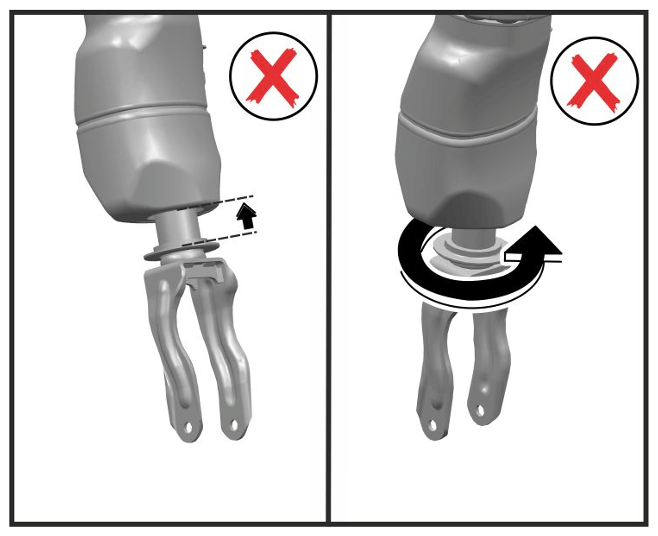

Do not lift off/turn air spring

• Never empty air springs completely. This applies to both installed and removed air springs. Air springs must only be bled as described under

  > WM, 430117 BLEEDING AND FILLING THE LEVELLING SYSTEM

• An air spring is depressurized if the pressure in the air spring is less than 1.5 bar.
• Never lower a vehicle with empty air springs.
• Air-spring struts must be installed in the vehicle within one year.
• Do not set the air-spring strut down on/against the control valves connectors, air connection or screw dome.
• Do not set the air-spring strut down on/against the air connection/screw dome.
• The air-spring strut may only be supported on the cover and on the damper fork -1-  .
• Never turn the air spring or lift it off the shock absorber.  > Do not lift off/turn air spring. Do not lift off/turn air spring

1. Only for right drive shaft  : Replace shaft sealing ring in the final drive.

   > WM, 395955 REPLACING SEALING RING FOR ALL-WHEEL DRIVE FLANGE SHAFT

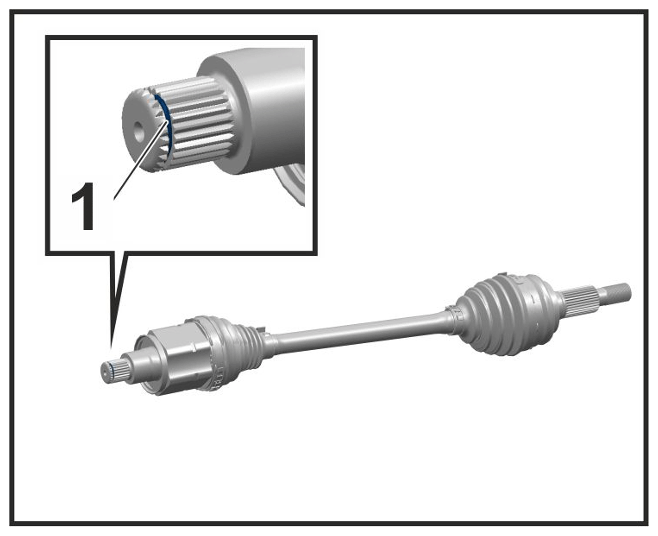

2. Only for right drive shaft:  Replace circlip -1-  on the drive shaft.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Circlip

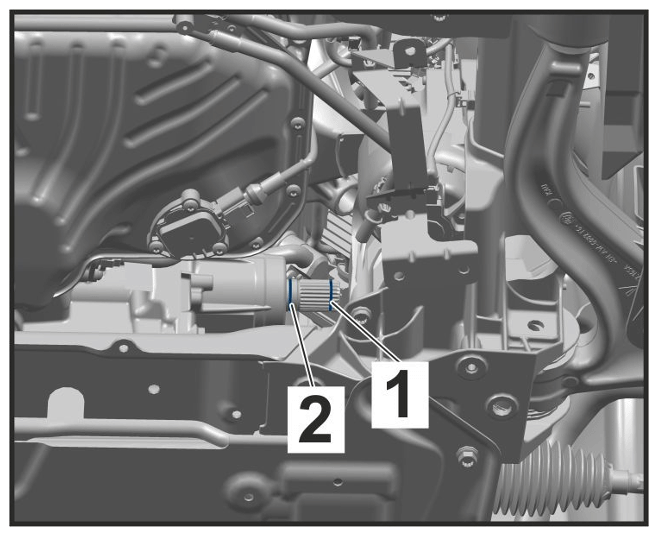

3. Only for left drive shaft:  Replace circlip -1-  and sealing ring -2-  on the front final drive shaft.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Circlip and sealing ring

   Information

   • Molub Alloy Paste TA can be ordered using the Porsche Electronic Parts Information (PET).

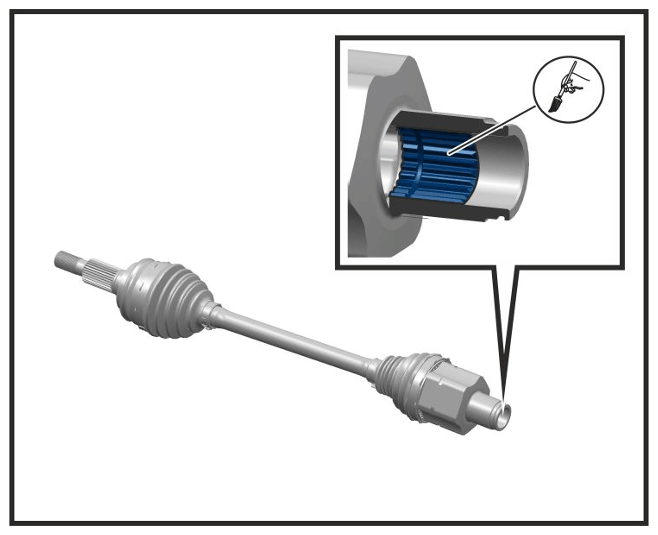

4. Only for left drive shaft:  Grease splines on the drive shaft with Molub Alloy Paste TA > Greasing splines

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Greasing splines

   Information

   Always avoid the following when fitting/removing the air-spring strut:

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Do not lift off/turn air spring

   • Lifting the air spring off the shock absorber.
   • Turning the air spring with respect to the shock absorber.

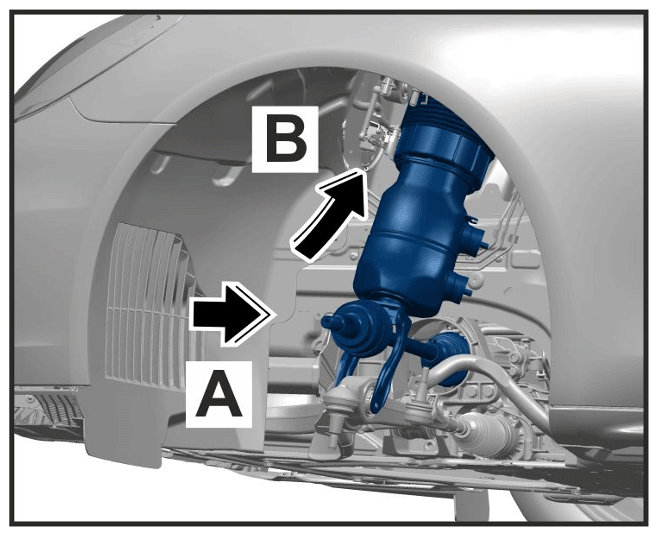

5. Move air-spring strut together with drive shaft into installation position -arrow A/B-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Moving air-spring strut and drive shaft into installation position

   Information

   • Make sure not to damage the sealing ring when guiding the drive shaft into the final drive.
   • Check that the profile splines on the drive shaft and transmission side interlock securely!
   • The use of an impact tool is not permitted.
   1. 5.1 Fit drive shaft into the front final drive with a quick jerking movement.

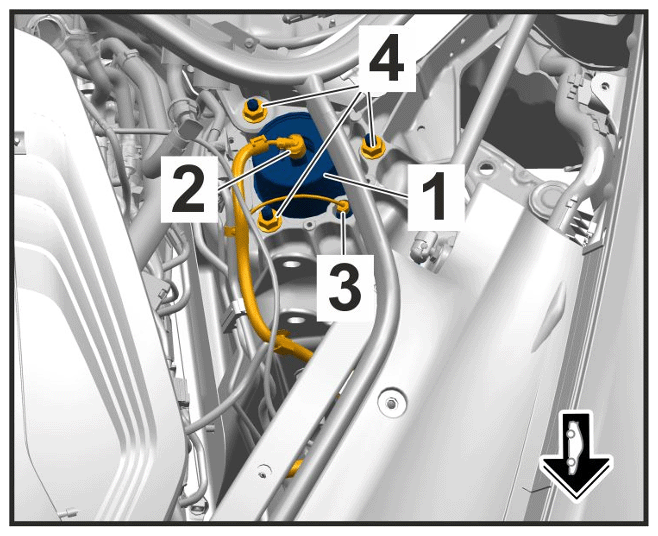

6. Fit air-spring strut -1-  at the top.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for air-spring strut, top

   1. 6.1 Get another person to help by holding the spring strut and drive shaft.
   2. 6.2 Tighten nuts -4-  > Initial tightening 40 Nm (30 ftlb.)  > Final tightening + 45°

      Information

      Check the following before installing the air line:

      • Check that the cutting ring -1-  and Voss threaded joint -2-  are still on the air line -3-  .
      • Check that the air line is fitted correctly.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Checking air line

      Only one marking -1-  on the air line should be visible.

      Pull the air line briefly against the insertion direction. If it cannot be pulled out, the air line is fitted correctly.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Checking that air line is fitted correctly

   3. 6.3 Connect air line and tighten Voss threaded joint -3-  > Tightening torque 5 Nm (3.5 ftlb.)
   4. 6.4 Connect and lock electric plug connection -2-  .

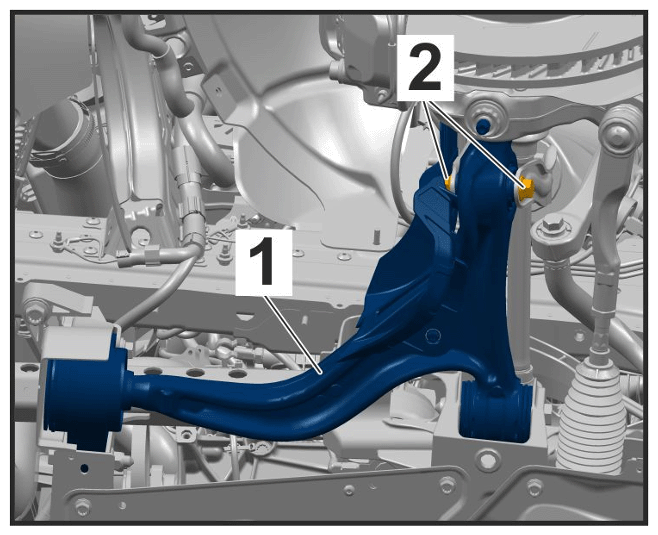

7. Fit spring strut on the lower trailing arm -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for spring strut on lower trailing arm

   1. 7.1 Install threaded joint -2-  (do not tighten!).
   2. 7.2 Remove protective tube (shop-made) from the drive shaft.

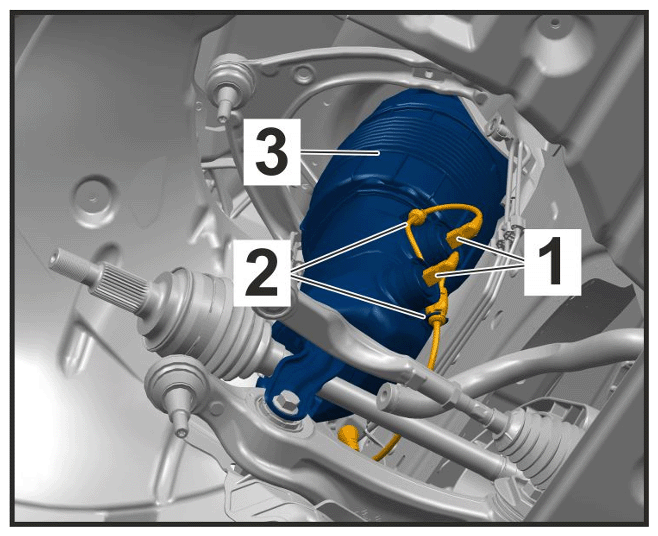

8. Secure electric lines to the front air-spring strut -3-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric lines on front air-spring strut

   1. 8.1 Connect and lock electric plug connections -1-  .
   2. 8.2 Secure electric line to the brackets -2-  .
