Technical Values

Location	Des...	Type	Basic val...
Air line to valve unit	Item 3: Union nut (air connection 6 mm)	Tightening torque	3 Nm (2 ftlb.)

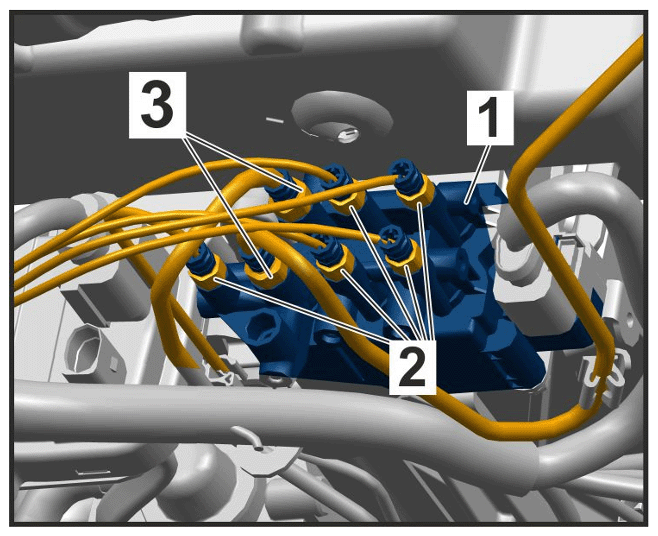

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for air lines on valve unit
Air line to valve unit	Item 2: Union nut (air connection 4 mm)	Tightening torque	2 Nm (1.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for air lines on valve unit
Valve unit to holder	Item Hexagon-head bolt	Tightening torque	4.5 Nm (3 ftlb.)

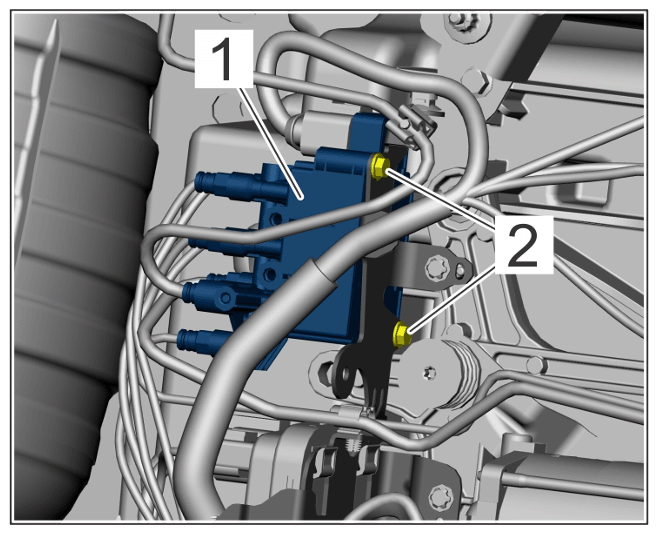

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Valve unit to holder
