Replacing Compressor

Information

If the compressor has to be replaced, the control unit for the compressor must also be replaced.

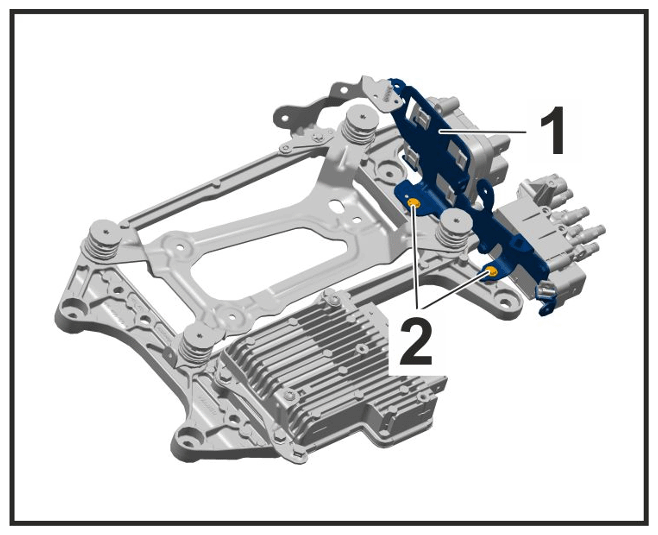

1. Remove holder -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for holder

   1. 1.1 Unscrew fastening screws -2-  using > 9890 - socket wrench E12.

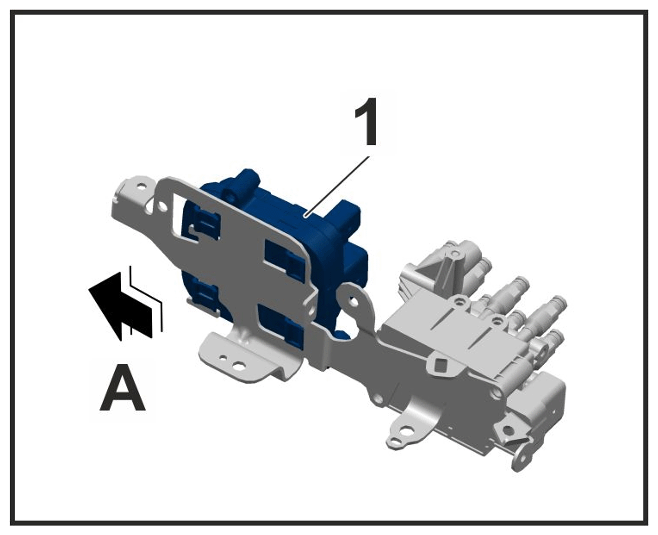

2. Slide control unit for compressor -1-  off the holder -arrow A-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Mounting for control unit for compressor

3. Install new control unit for compressor in reverse order.

   Mounting for holder: > Tightening torque 10 Nm (7 ftlb.)
