Installing Compressor

Fit compressor on the holder.

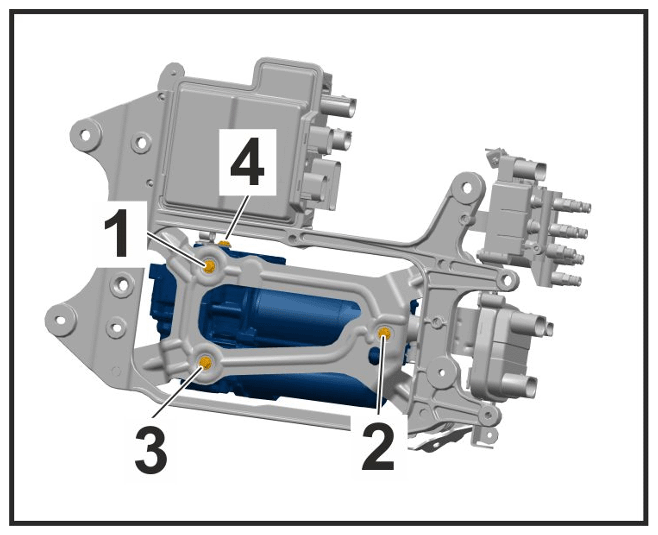

Fig 1: Compressor Mounting Screws Tightening Sequence
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Compressor mounting
1. 1.1 Tighten fastening screws in the sequence -1 to 4- using > 9890 - socket wrench E12 > Observe tightening torque/installation sequence for screws 1-3! 10 Nm (7 ftlb.)

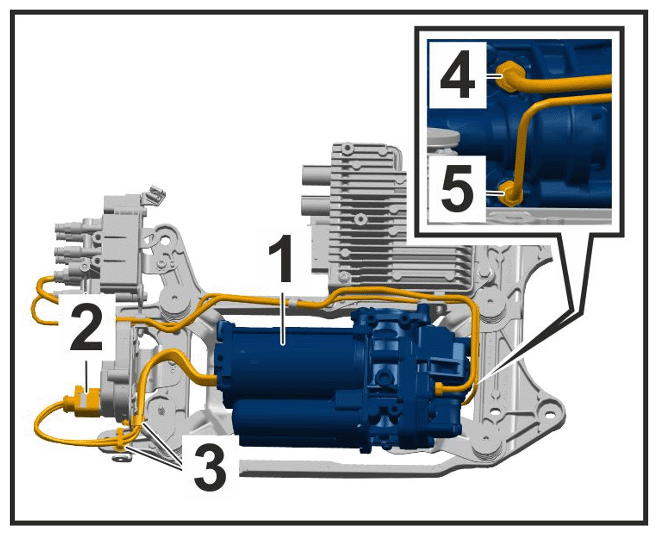

Fit lines on the compressor -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for lines on compressor

Information

Check the following before installing the air line:
- Check that the cutting ring -1- and Voss threaded joint -2- are still on the air line -3- .
- Check that the air line is fitted correctly.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Checking air line

Only one marking -1- on the air line should be visible.

Pull the air line briefly against the insertion direction. If it cannot be pulled out, the air line is fitted correctly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Checking that air line is fitted correctly
1. 2.1 Connect air lines and tighten Voss threaded joint -4- for the air lines > Tightening torque 3 Nm (2 ftlb.)
2. 2.2 Connect air lines and tighten Voss threaded joint -5- for the air lines > Tightening torque 2 Nm (1.5 ftlb.)
3. 2.3 Secure brackets -3- .
4. 2.4 Connect electric plug connection -2- to the control unit and lock it.
Install levelling system -5- .

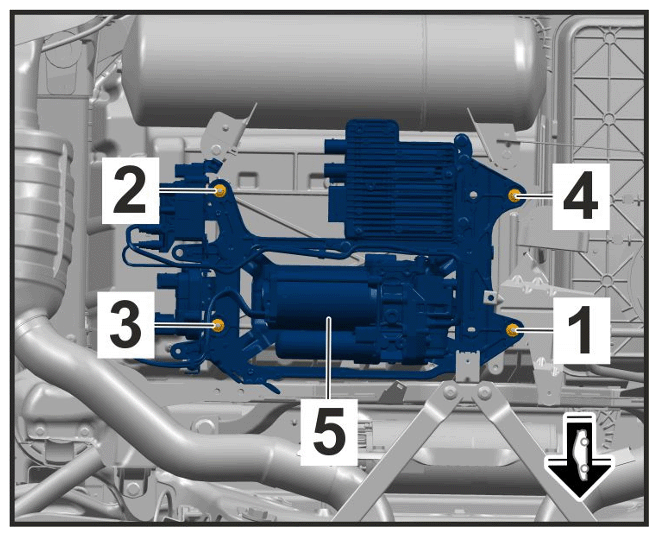

Fig 2: Levelling System Mounting Nuts Tightening Sequence - Conventional
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Levelling system mounting - conventional

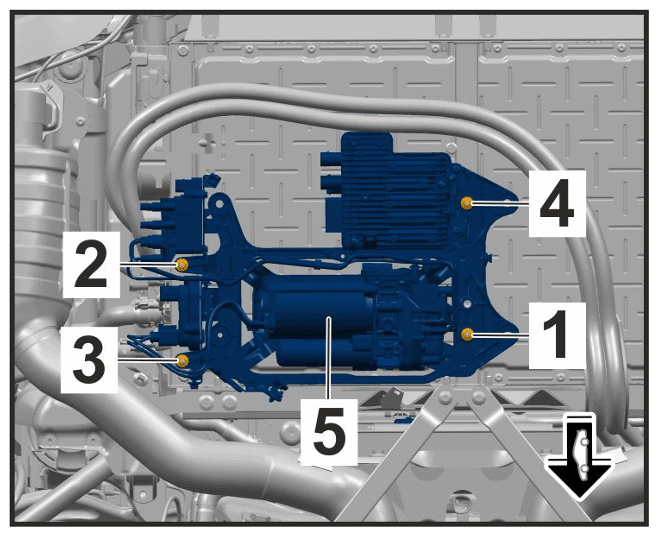

Fig 3: Levelling System Mounting Nuts Tightening Sequence - PHEV
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Levelling system mounting - PHEV
1. 3.1 Tighten nuts in the sequence -1 to 4- > Tightening torque 8 Nm (6 ftlb.)

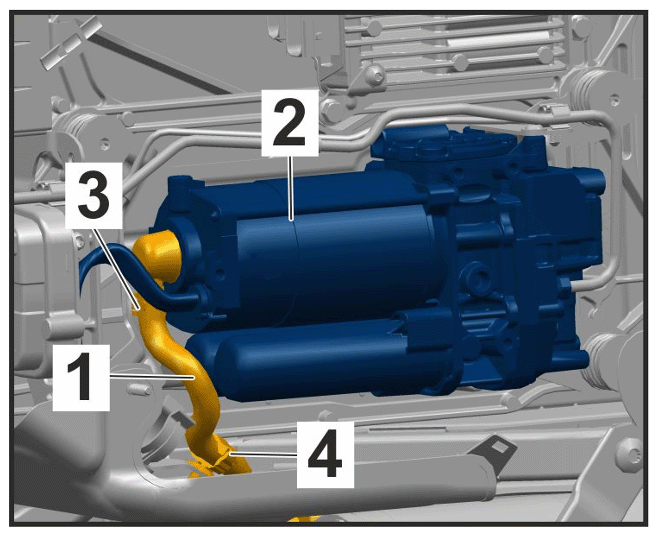

Fit suction line -1- on the compressor -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for suction line on compressor
1. 4.1 Connect suction line -1- to connection piece and secure with a spring band clamp -3- .
2. 4.2 Secure bracket -4- .
Information

Check the following before installing the air line:
- Check that the cutting ring -1- and Voss threaded joint -2- are still on the air line -3- .
- Check that the air line is fitted correctly.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Checking air line

Only one marking -1- on the air line should be visible.

Pull the air line briefly against the insertion direction. If it cannot be pulled out, the air line is fitted correctly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Checking that air line is fitted correctly

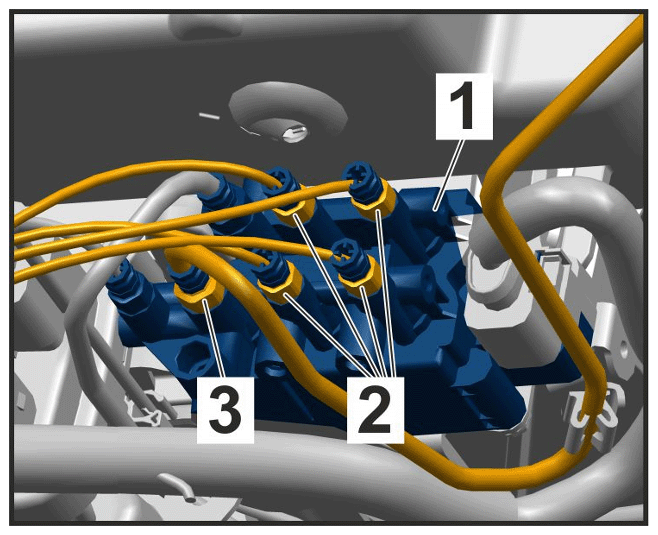

Fit air lines on valve unit -1- . The air line is assigned according to the imprint on the valve unit.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for air lines on valve unit
1. 5.1 Connect air lines and tighten Voss threaded joints -2- > Tightening torque 2 Nm (1.5 ftlb.)
2. 5.2 Connect air lines and tighten Voss threaded joint -3- > Tightening torque 3 Nm (2 ftlb.)

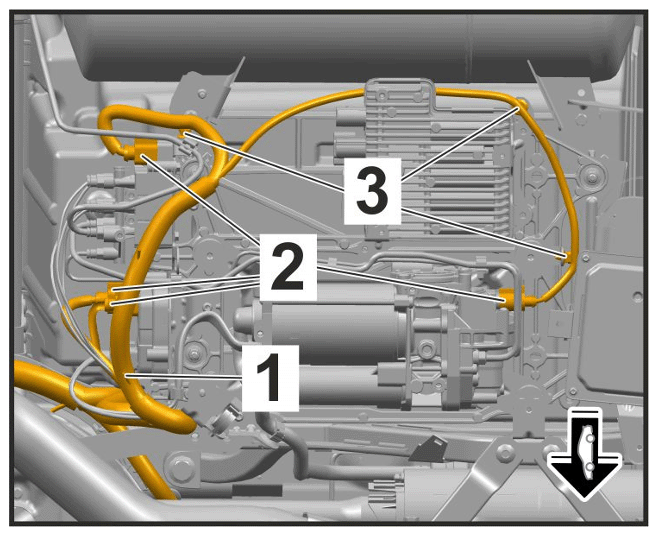

Fit wire harness for levelling system -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for wire harness for levelling system
1. 6.1 Connect and lock electric plug connections -2- .
2. 6.2 Secure wire harness for levelling system to the brackets -3- .

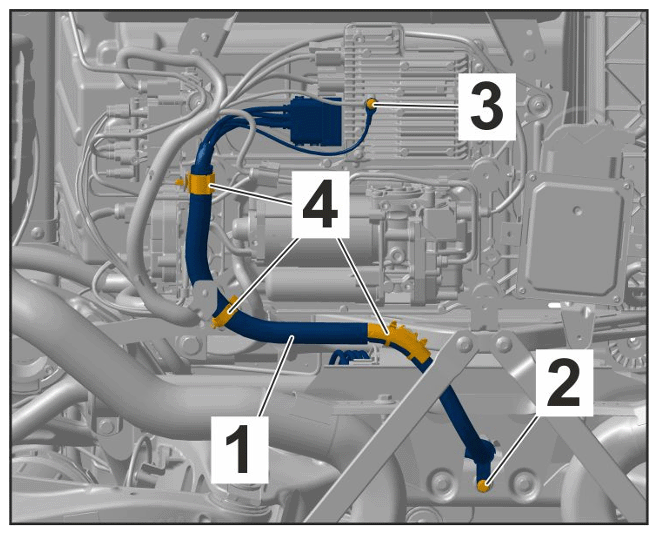

Fit wire harness for PDCC -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting for PDCC wire harness
1. 7.1 Secure PDCC wire harness to the brackets -4- .
2. 7.2 Screw in and tighten fastening screw for ground line -3- .
Information

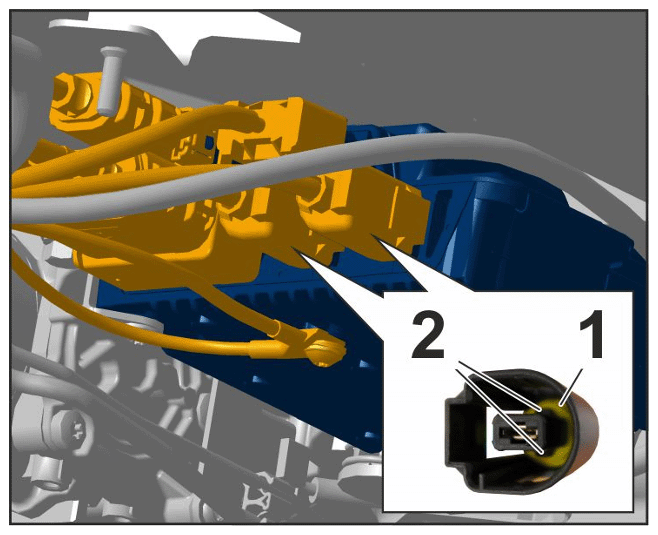

Before connecting the 48 V connectors, check whether the sealing ring -1- is positioned under the locking lugs -2- in the connectors.

Carefully press the sealing ring back over the locking lugs if necessary.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Correct position of sealing ring

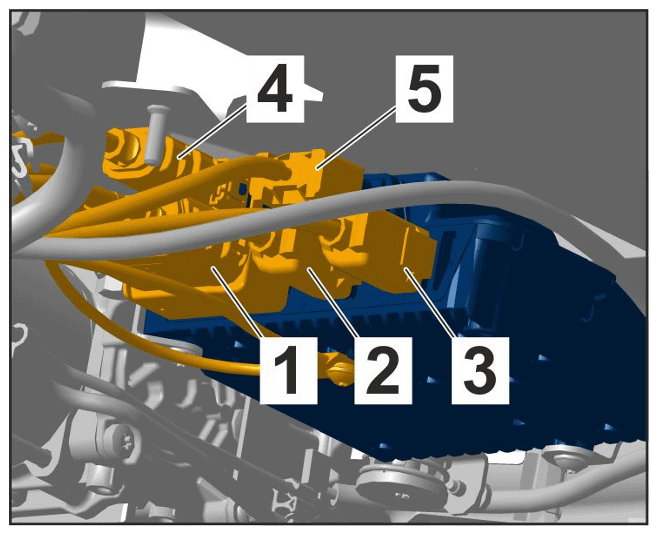

Plug in and lock electric plug connections on the PDCC control unit in the sequence -1 to 5- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sequence for connecting electric plug connections

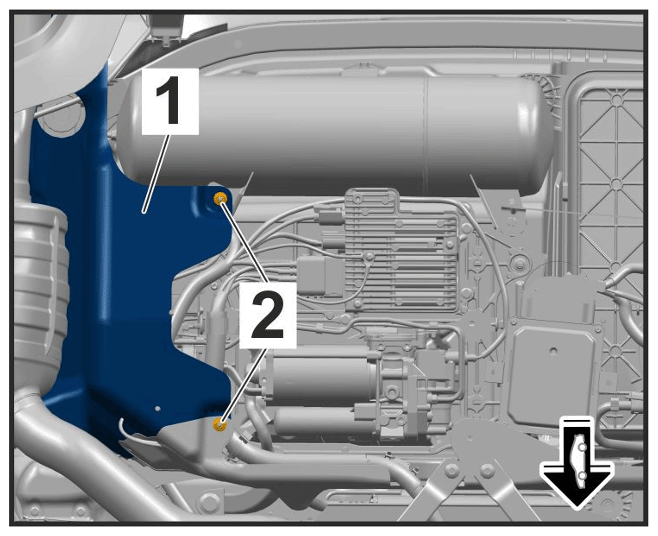

Fit heat protection panel -1- at the bottom.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat protection panel mounting
