Technical Values - Luggage Compartment Trim Panels

Location	Description	Type	Basic value	Tolerance
Screws for lashing point in luggage compartment	Item 2	Tightening torque	9.7 Nm (7.2 ftlb.)

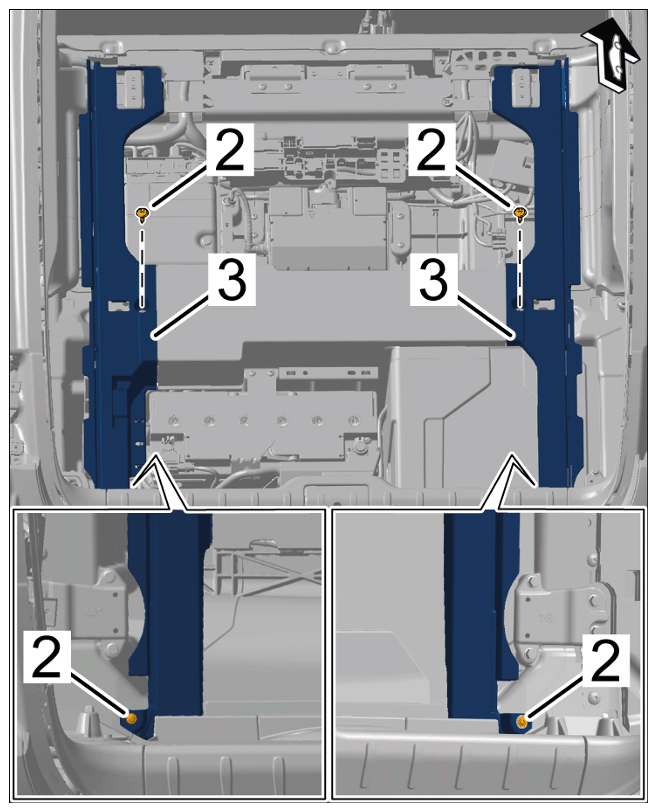

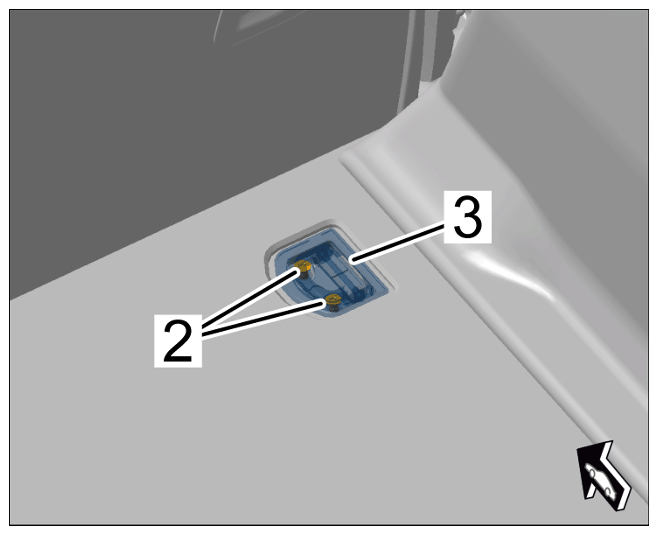

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for lashing point in luggage compartment
Retaining rail screws	Item 2	Tightening torque	12 Nm (8.9 ftlb.)

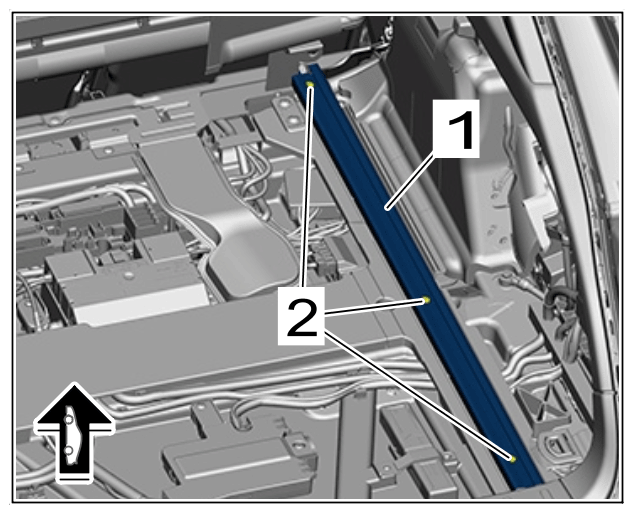

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting rail, right
Screws for luggage compartment trim panel on luggage compartment cover (lock support panel)	Items 2 and 3	Tightening torque	1.5 Nm (1.1 ftlb.)

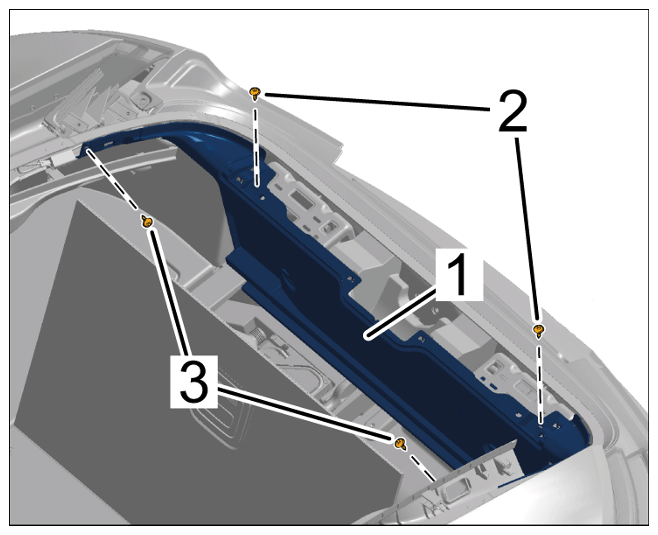

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for luggage compartment trim panel on luggage compartment cover (lock support panel)
Left and right boot pan cover screws	Item 2	Tightening torque	1.5 Nm (1.1 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Screws for luggage compartment cover
