Technical Values - Infrared Camera Control Unit Holder

Location Description Type Basic value Tolerance
Screws on infrared camera control unit holder Item 2 Tightening torque 4 Nm (3 ftlb.)

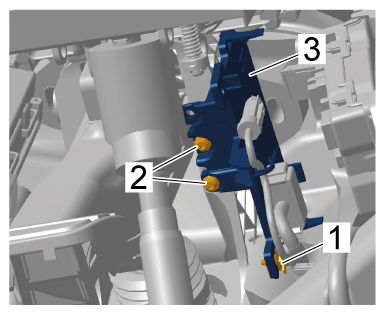

G15874246Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on infrared camera control unit holder
