Removing Air Vent

  1. Screw off nut -2-  .

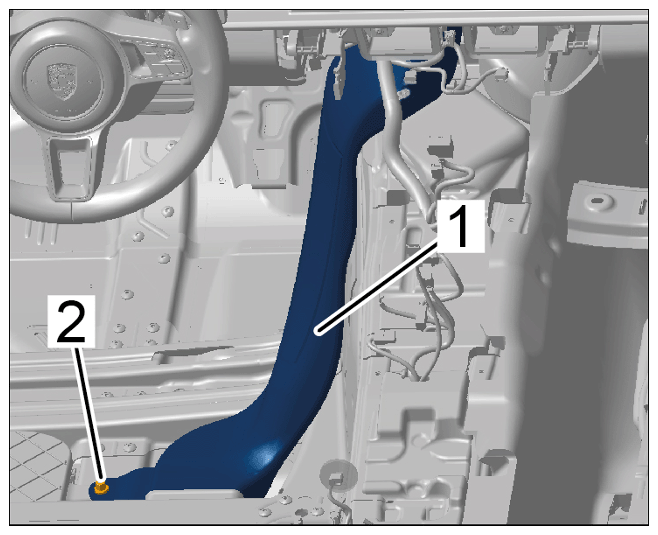

    G15875105Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Unscrewing nut

  2. Loosen air vent -2-  from air guide in front centre console -5-  and rear centre air guide -4-  .

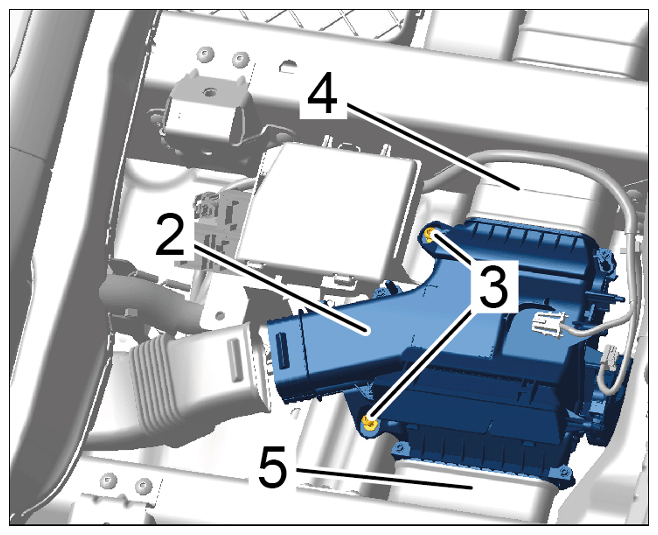

    G15875106Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Loosening air vent

    1. 2.1 Pull rear centre air guide -4-  out of the air vent -2-  .
    2. 2.2 Unscrew clips -3-  .
    3. 2.3 Pull air vent -2-  out of air guide in front centre console -5-  .
  3. Pull air vent -2-  off the air guide on the B-pillar -1-  .

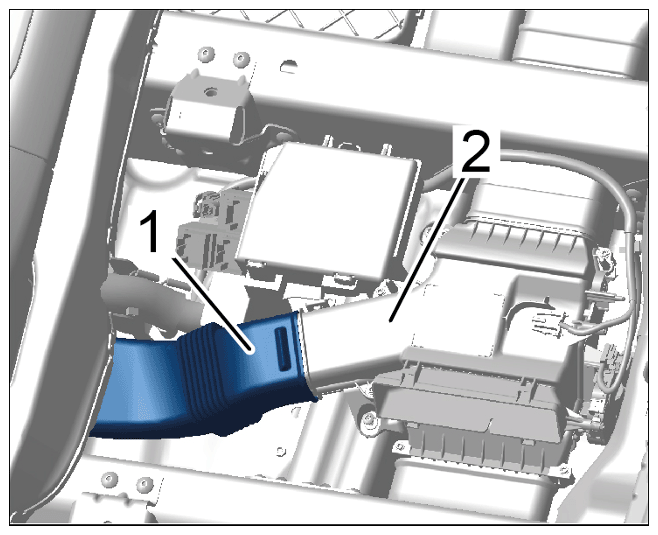

    G15875107Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Pulling air vent off air guide on B-pillar

  4. Release electric plug connection on the temperature sensor -arrows a-  and disconnect it -arrow A-  .

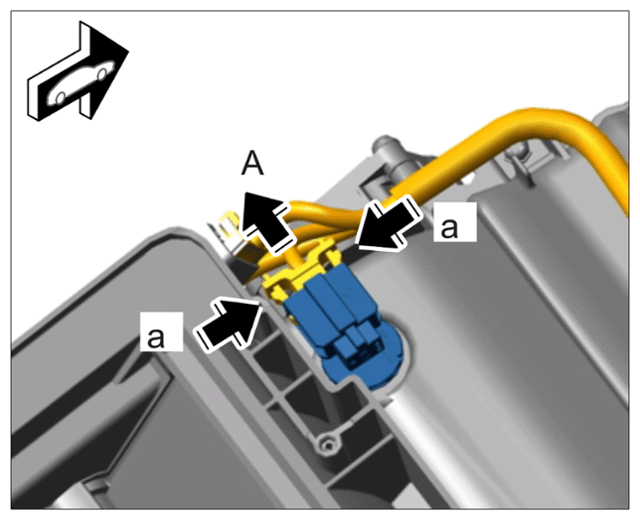

    G15875108Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing and disconnecting electric plug connection on temperature sensor

  5. Release and disconnect electric plug connections for servo motors -arrows-  .

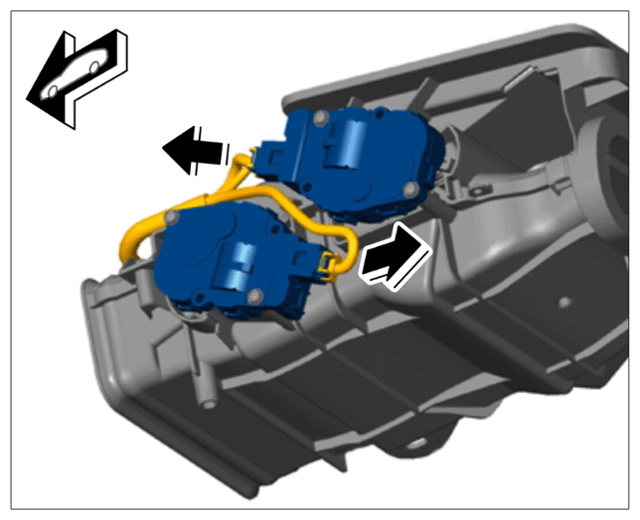

    G15875109Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Releasing and disconnecting electric plug connections for servo motors

  6. Remove air vent by pulling it up.
