Removing Air Guide For Lower Part Of Centre Console

  1. Disconnect air guide for lower part of centre console -3-  from air guide for upper part of centre console and remove it by pulling it up.

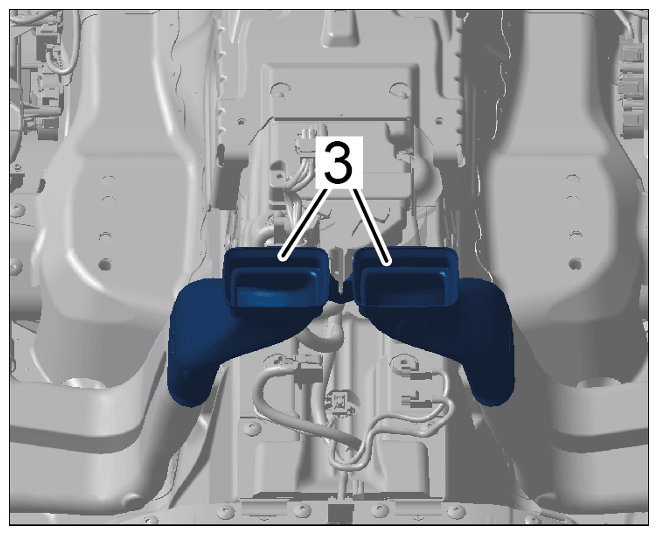

    G15875102Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Removing air guide for lower part of centre console
