Component Information

G15875098Courtesy of PORSCHE CARS NORTH AMERICA, INC.

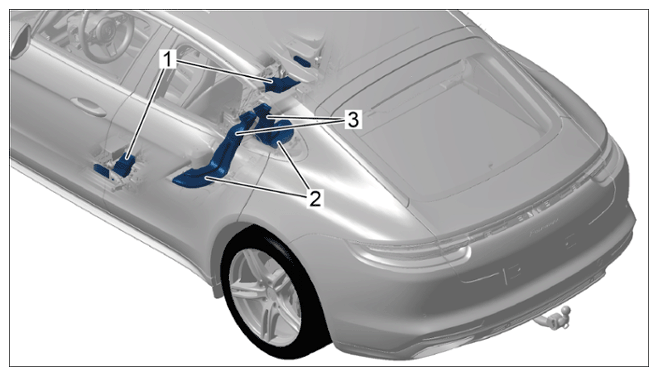

Installation position of air guide for additional air conditioning

1  B-pillar air guide
2  Air guide for upper part of centre console
3  Air guide for lower part of centre console
