Removing Servo Motor For Rear Air Flow (4-Zone Air Conditioning Only)

  1. Remove servo motor for rear air flow -1-  .

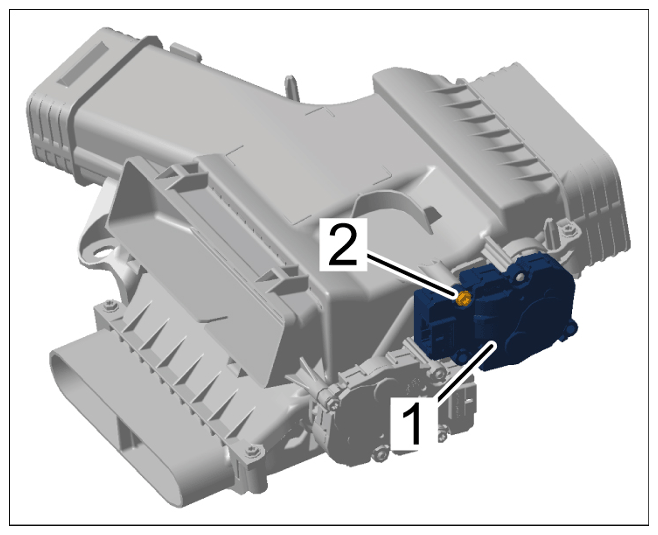

G15875097Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing servo motor for rear air flow

  1. 1.1 Unscrew and remove screw -2-  .
  2. 1.2 Remove servo motor for rear air flow -1-  .
