Removing Servo Motor For Rear Air Distribution (2-Zone And 4-Zone Air Conditioning)

  1. Remove servo motor for rear air distribution -1-  .

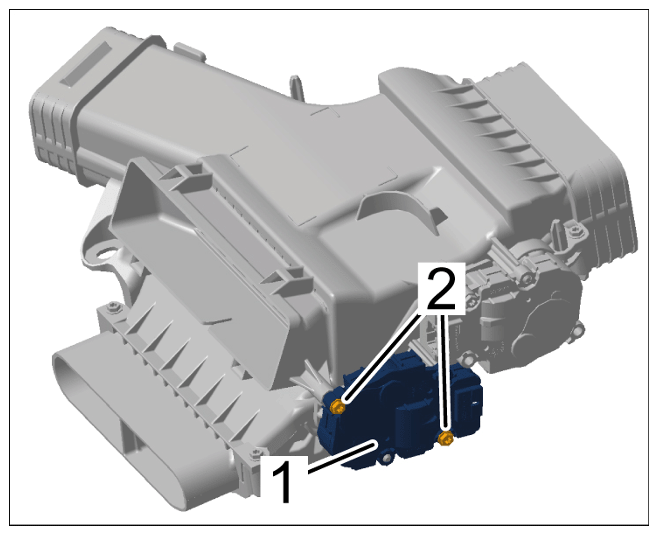

G15875094Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Removing servo motor for rear air distribution

  1. 1.1 Unscrew and remove screws -2-  .
  2. 1.2 Remove servo motor for rear air distribution -1-  .
