Removing Pressure Adjuster

  1. Remove pressure adjuster -1-  .
    1. 1.1 Release and pull off electric connector.
    2. 1.2 Unscrew screws -arrows-  .
    3. 1.3 Remove pressure adjuster -1-  .
    4. 1.4 Remove connection piece -2-  using a magnet.

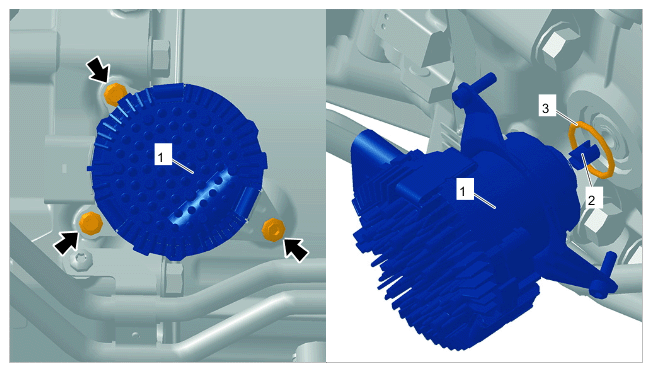

G15888669Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure adjuster for clutch
