Installing Pressure Adjuster

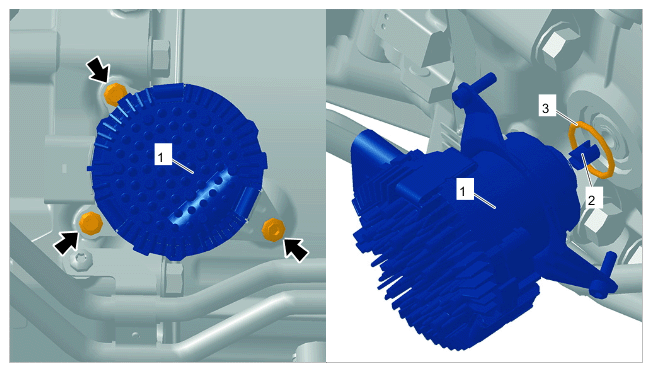

1. Install pressure adjuster -1-  .
   1. 1.1 Replace gasket -3-  .
   2. 1.2 Install coupling piece -2-  .
   3. 1.3 Place pressure adjuster -1-  in installation position.
   4. 1.4 Tighten screws -Arrows-  .

      Tightening torque: >

   5. 1.5 Connect and lock electric connectors.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pressure adjuster for clutch
