Removing Brake Booster

Information

When carrying out work during which fluids can escape, leave electric plug connections to be disconnected locked and connected for as long as possible. This prevents fluid from getting onto electric contacts and causing corrosion.

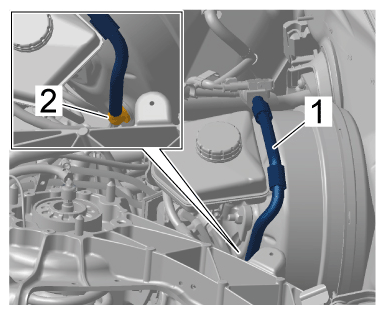

1. Disconnect vacuum line -1-  with adapter -2-  from the brake booster and move it aside.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Vacuum line

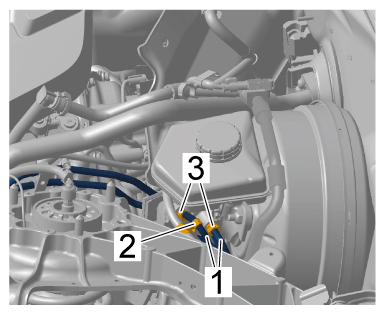

2. Disconnect brake lines -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Brake lines

   1. 2.1 Disengage clip -2-  .
   2. 2.2 Unscrew nuts -3-.

      Information

      • Close off the brake lines using suitable stoppers.
      • Place a cloth under the brake booster to soak up emerging brake fluid.
   3. 2.3 Pull out brake lines -1-  and set them aside.

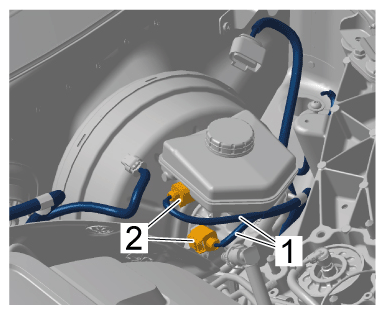

3. Remove electric lines -1-  .
   1. 3.1 Release and unplug electric plug connections -2-  .
   2. 3.2 Move electric lines -1-  aside.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Electric lines

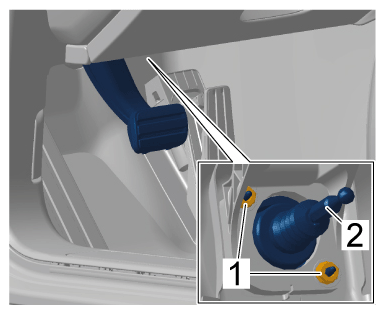

4. Unscrew nuts -1-  on brake booster -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Push rod

   Information

   Make sure not to damage the push rod boot when removing the brake booster.

   Information

   The help of another person is required.

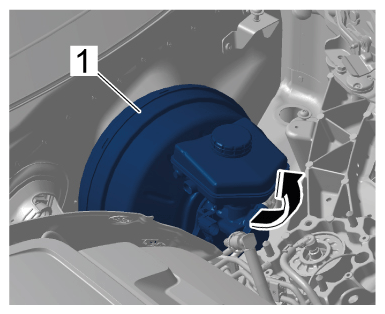

5. Remove brake booster -1-  .
   1. 5.1 Press brake lines aside.
   2. 5.2 Swivel out the brake booster -1-  carefully (-arrow-  ) and remove it.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Brake booster
