Preliminary Work

WARNING: This page is about a different variant/trim than selected.

Disengage push rod from brake booster at the brake pedal.

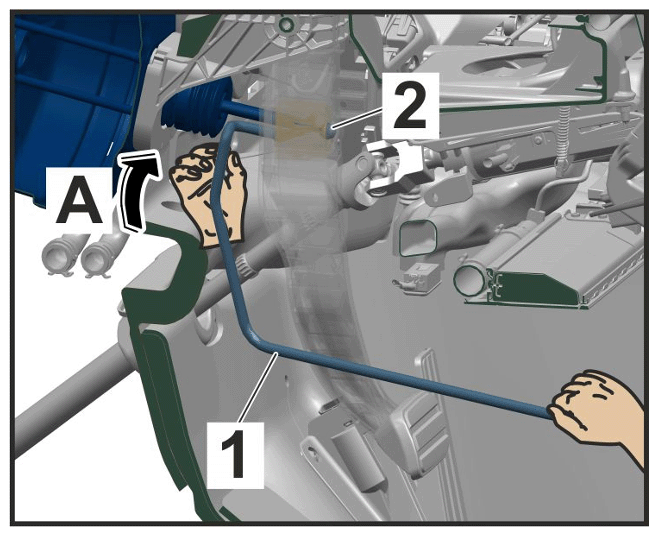

1.1 >9897 - Unlocking tool -1- must be guided into the support -2- for the ball joint of the push rod from below.

1.2 >9897 - Unlocking tool must be pressed into the support from behind -arrow A-.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disengaging push rod from brake booster at the brake pedal (at the sides)

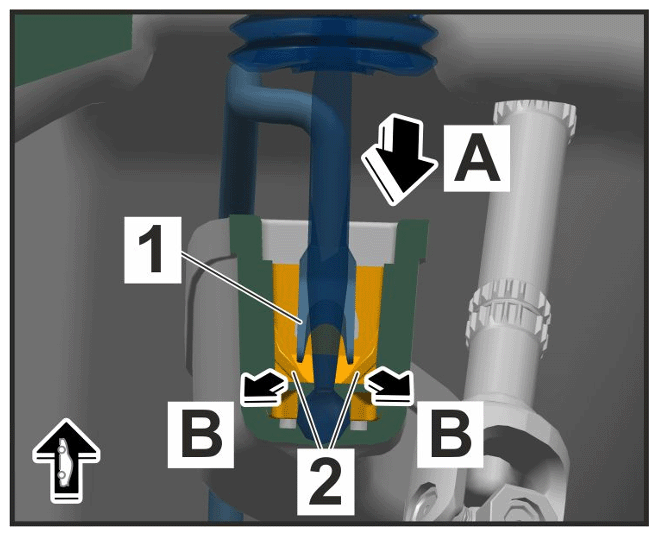

1.3 The pressure -arrow A- must cause the fork -1- of the >9897 - unlocking tool to prise the retaining lugs -2- apart -arrow B-.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Disengaging push rod from brake booster at the brake pedal (from above)

Remove cross panel.
> WM, 508119 REMOVING AND INSTALLING CROSS PANEL

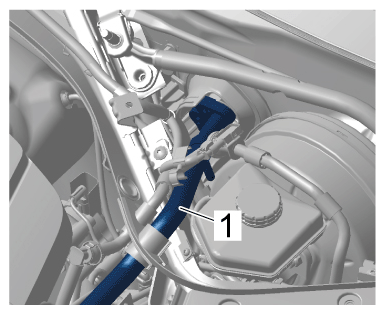

Disconnect refrigerant line -1- at the expansion valve.
> WM, 874419 REMOVING AND INSTALLING EVAPORATOR/CONDENSER LINE

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Refrigerant line
Drain the brake fluid reservoir.
> 471019 REMOVING AND INSTALLING BRAKE FLUID RESERVOIR
