Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Des... | Type | Basic val... | Toleranc... | Toleranc... |
|---|---|---|---|---|---|

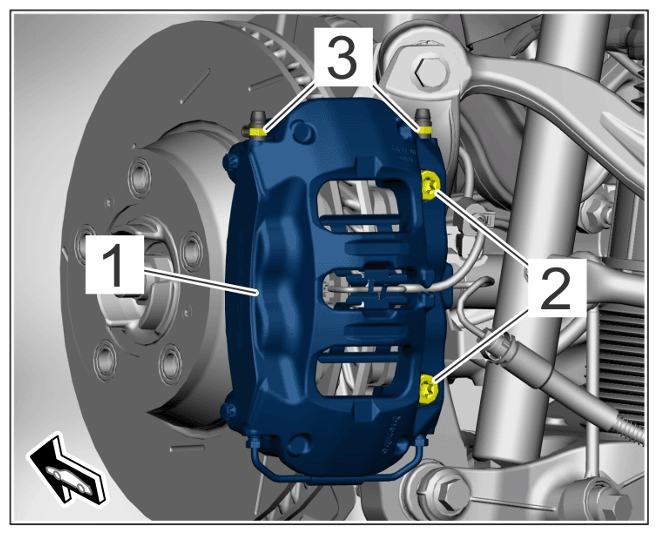

| Brake calliper to wheel bearing housing | Item 2: M12/Always replace screws following removal! | Initial tightening | 20 Nm (15 ftlb.) | ||
|
Rear-axle brake calliper |
|||||
| Brake calliper to wheel bearing housing | Item 2: M12/Always replace screws following removal! | Final tightening torque angle | + 70° | ||
|
Rear-axle brake calliper |
|||||
| Brake line to brake caliper | Union nut, M10 x 1 | Tightening torque | 14 Nm (10.5 ftlb.) | ||
| Brake line holder to rear-axle brake caliper | Hexagon head bolt, M6 x 16 | Tightening torque | 8 Nm (6 ftlb.) | ||
