Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Des...	Type	Basic val...
Brake calliper to wheel bearing housing	Item 2: Cheese head screw M14 x 1.5/always replace screws after dismantling!	Initial tightening	30 Nm (22.1 ftlb.)

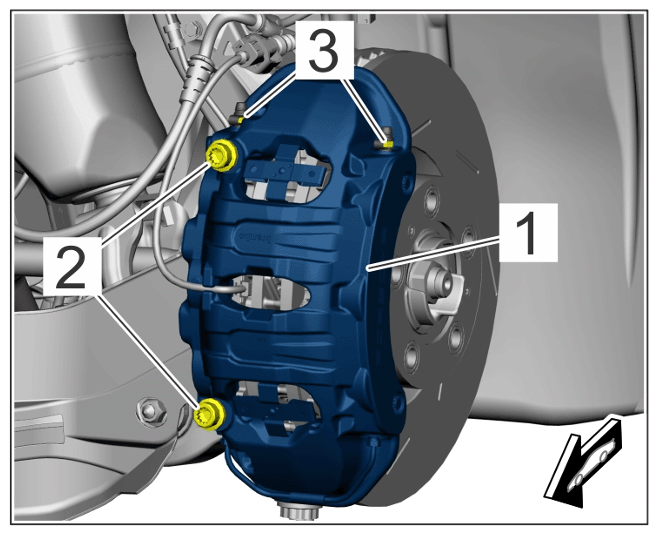

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake calliper on front axle
Brake calliper to wheel bearing housing	Item 2: Cheese head screw, M14 x 1.5/Always replace screws after dismantling!	Final tightening torque angle	+ 90°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake calliper on front axle
Brake line holder to wheel bearing housing	Item 4: Hexagon head bolt, M6 x 16	Tightening torque	8 Nm (6 ftlb.)

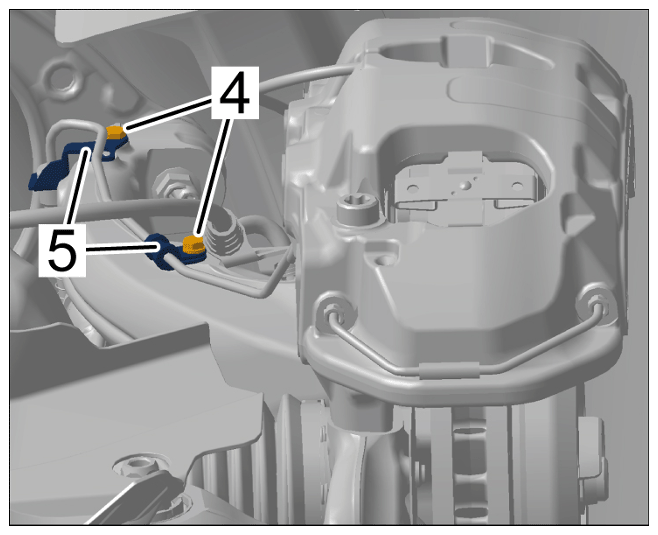

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake line holder
Brake line (from brake calliper) to hydraulic unit	Union nut	Tightening torque	14 Nm (10.5 ftlb.)
