Installing Front Brake CALLIPER

Information

• The use of an impact bolter is not permitted.
• The thread must be checked visually and may have to be blown out carefully using compressed air. Always wear protective goggles when doing this!
• Replace screws.

Information

Do not bend the brake lines.

• For easier access, turn the steering fully to the left or right!

1. Visually check that all parts are in perfect condition and replace them if necessary.

   Information

   Use >T10439 - assembly pins  > Assembly pin for brake calliper Assembly pin for brake caliper  to make it easier to remove/install the brake calliper.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Assembly pin for brake calliper

2. Fit front brake calliper -2-  on the wheel bearing housing.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

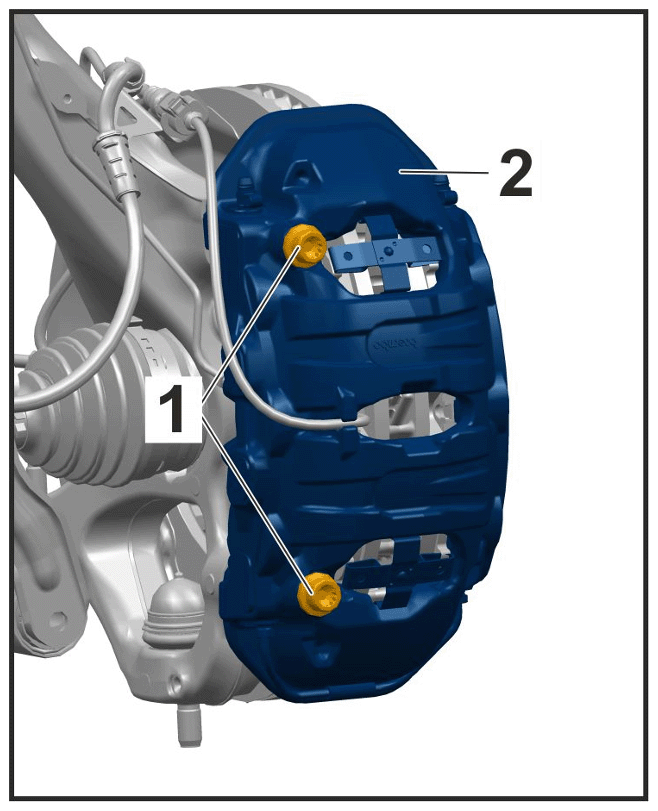

   Mounting for front brake calliper

   1. 2.1 Reset disc brake pads using >9472 - brake piston resetting fixture.
   2. 2.2 Carefully move brake calliper into installation position.
   3. 2.3 Tighten the screws -1-  .

      > Initial tightening 30 Nm (22.1 ftlb.)

      > Final tightening torque angle + 90°

3. Fit brake line -2-  on brake calliper and tighten union nut -1-  . >Tightening torque 14 Nm (10.5 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

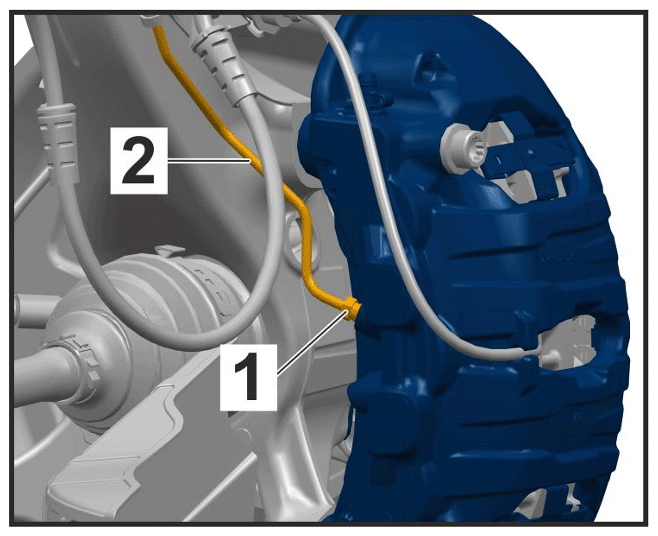

   Brake line mounting on brake calliper

4. Secure brake line holder -5-  on wheel bearing housing and tighten screws -4-  . >Tightening torque 8 Nm (6 ftlb.)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

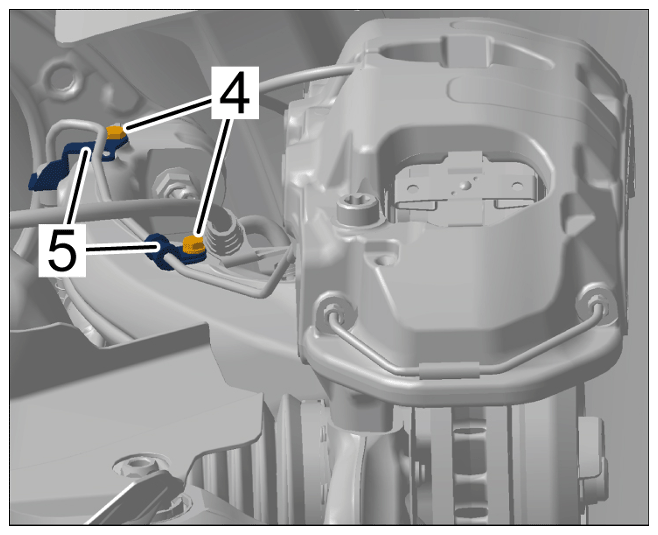

   Loosening brake line holder

5. Connect and lock electric plug connection for brake pad wear indicator -1-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

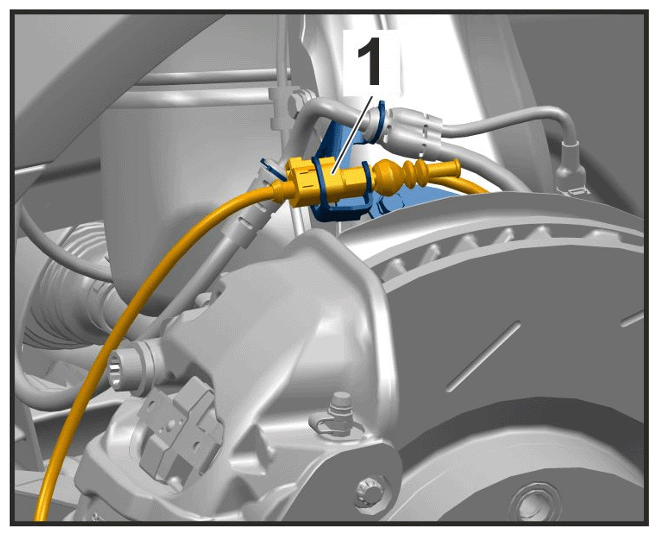

Electric plug connection for brake pad wear indicator
