Removing Brake Master Cylinder
WARNING: This page is about a different variant/trim than selected.
Information
Do not open the brake fluid reservoir.
Information
- During assembly work on hydraulic connections, always leave all electric plug connections in the connection point area connected. This prevents the inside of electric plug connections from being splashed with brake fluid or water.
- Clean any electric plug connections that have become dirty or damp during removal and fitting using a lint-free cloth, for example.
- Brake fluid on electric contacts (even thinned brake fluid) causes corrosion and can result in faults in the system.
- Remove any escaping brake fluid immediately; rinse with water and dry thoroughly if necessary.

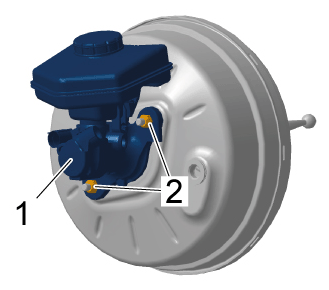

- Remove brake master cylinder -1- .
- Only if replacing the brake master cylinder:
Remove brake fluid reservoir.
