Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Des...	Type	Basic val...
Tightening torque brake caliper on front axle	Item 3: M10 x 1 thread	Tightening torque	14 Nm (10.3 ftlb.)

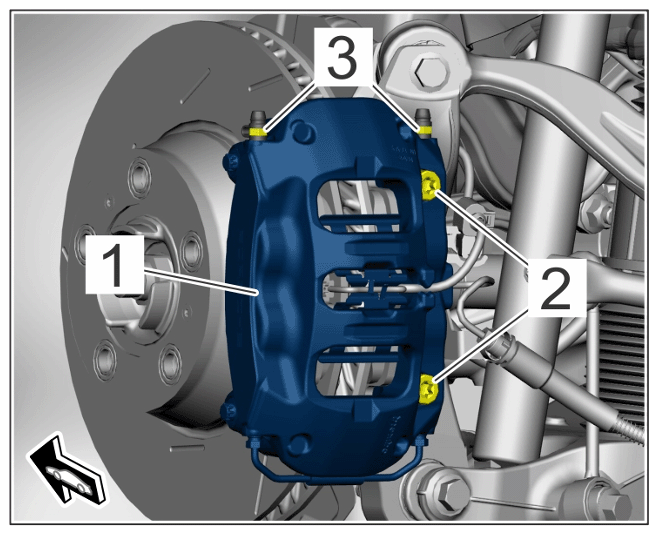

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake calliper on front axle
Bleeder screw on front calliper front (PCCB)	Item 3: M10 x 1 thread	Tightening torque	20 Nm (14.8 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Brake calliper on front axle
Bleeder screw on rear brake calliper (grey cast iron)	Item 3: M10 x 1 thread	Tightening torque	14 Nm (10.5 ftlb.)

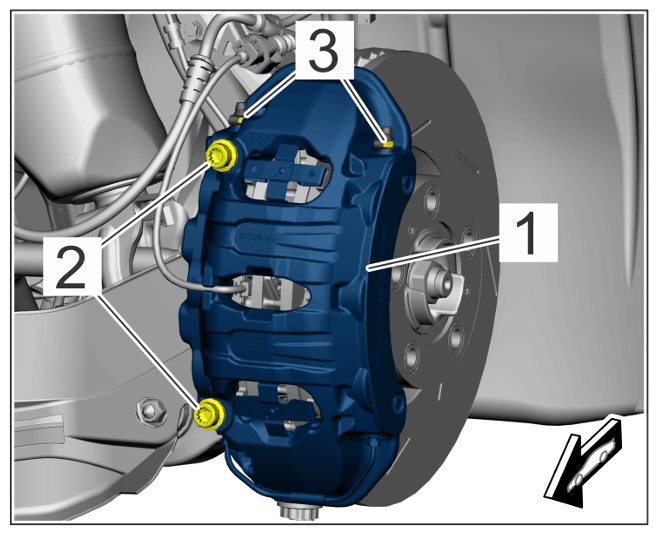

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear-axle brake calliper
Bleeder screw on rear brake caliper (PCCB)	Item 3: M10 x 1 thread	Tightening torque	14 Nm (10.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Rear-axle brake calliper
