Technical Values

WARNING: This page is about a different variant/trim than selected.
Location Des... Type Basic val... Toleranc... Toleranc...
Brake calliper to wheel bearing housing Item 2: M12/Always replace screws following removal! Initial tightening 20 Nm (15 ftlb.)
G15862442Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear-axle brake calliper

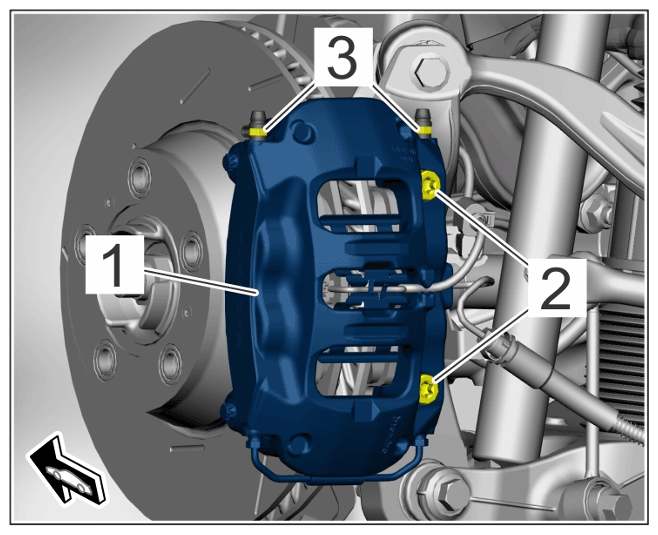

Brake calliper to wheel bearing housing Item 2: M12/Always replace screws following removal! Final tightening torque angle + 70°
G15862443Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rear-axle brake calliper

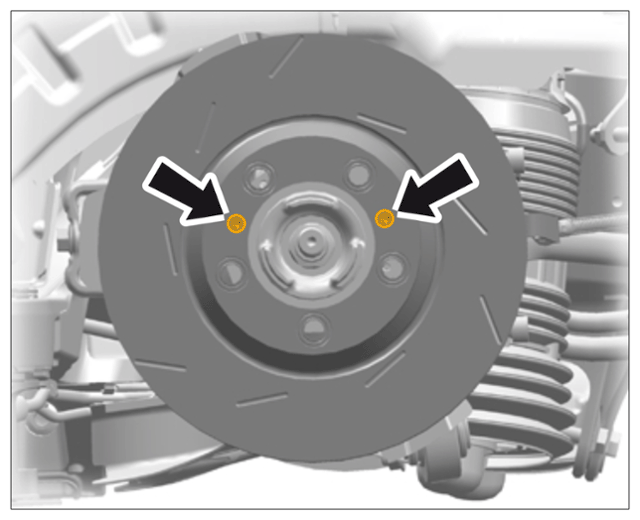

Brake disc to wheel hub Arrows: Counters unk screw, M6 X 12/always replace screws following removal! Tightening torque 5 Nm (3.5 ftlb.)
G15862444Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Brake disc fastening screws
