Preliminary Work
WARNING: This page is about a different variant/trim than selected.
Information
- Do not open the brake system.
- Do not disconnect the brake hose from the brake calliper when loosening the brake calliper.
- The core of the warning contact wire must not be left exposed! Worn insulation will cause a malfunction!
- If necessary, remove a little brake fluid from the reservoir by suction in order to prevent an overflow when the disc brake pads are pushed back!
- Remove rear wheels.
- Release and disconnect electric plug connection for brake pad wear indicator.

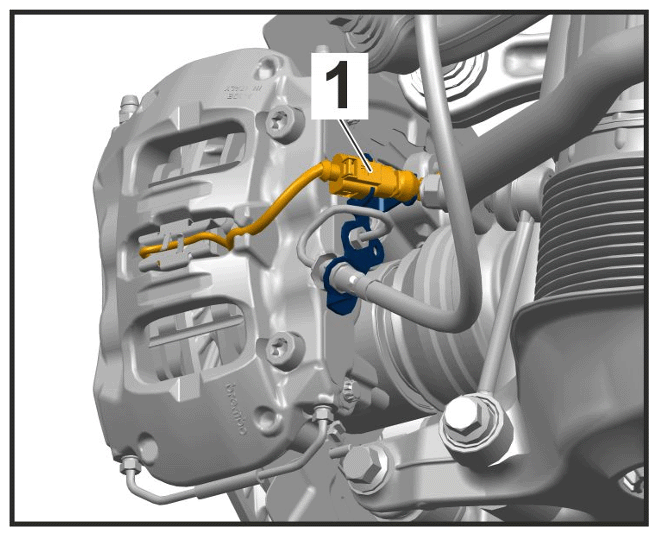

Electric plug connection for brake pad wear indicator
Information
- Do not use an impact bolter.
- Unscrew screws -arrows-
and loosen the brake calliper from the wheel bearing housing.

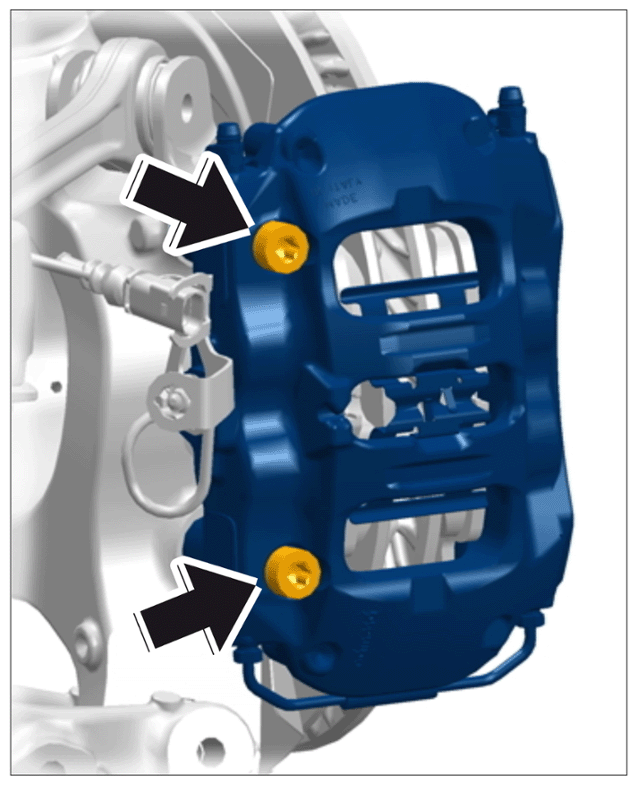

Loosening brake calliper
- Place brake calliper on a suitable base (e.g. universal lift). Use a suitable cloth as an intermediate layer to protect paintwork from damage.
When positioning the brake calliper on the base, carefully guide the brake line and brake hose!
