Installing Mounting Saddle

WARNING: This page is about a different variant/trim than selected.

Installation is performed in reverse order. Pay particular attention to the following:

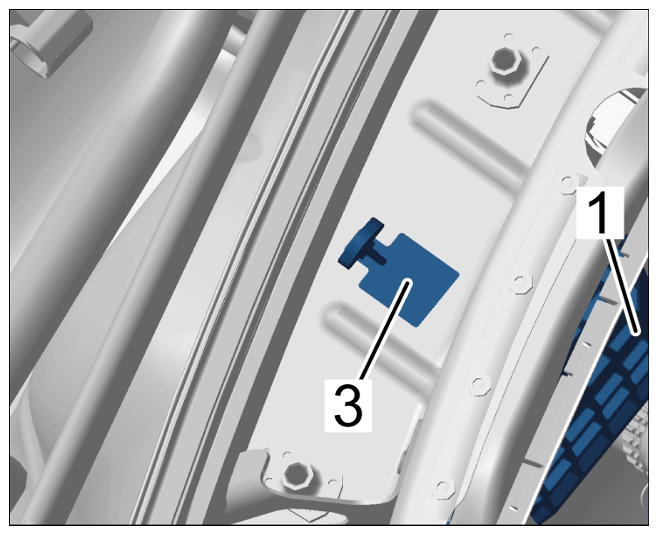

Align mounting saddle -1- with the cowl panel and firewall guide -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Mounting saddle

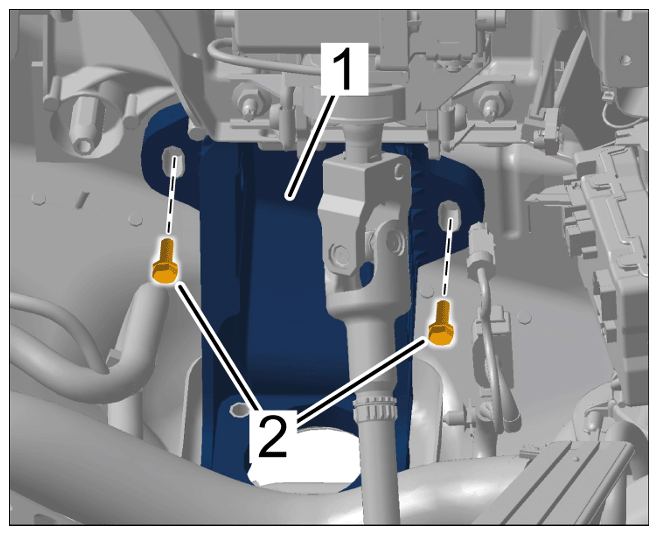

Screw in and tighten screws -2- > Tightening torque 23 Nm (17 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws on mounting saddle
Screw in and tighten nuts -1- > Tightening torque 23 Nm (17 ftlb.) + 2 Nm (1.5 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts on mounting saddle
