Installing Brake Pedal
WARNING: This page is about a different variant/trim than selected.
Information

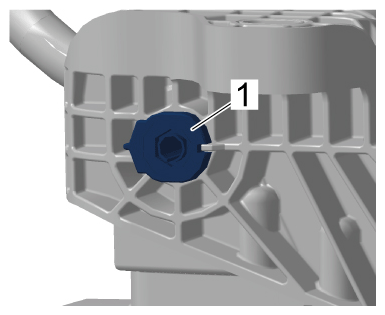

The cover on the pedal shaft -1- is coded and can only be fitted at the correct installation position.
Check that the lugs on the cover are engaged in the cut-outs in the base of the pedal
This is the only way to ensure that the pedal shaft -1- is installed at the correct position and will not turn.
Do not grease the pedal shaft -1- !
Pedal shaft
- Install brake pedal with pedal shaft.
- Insert push rod into brake pedal.
