Removing Spreader Device (Epb Actuator)
WARNING: This page is about a different variant/trim than selected.
- Release and disconnect electric plug connection on EPB actuator.
- Unscrew and remove screws -arrows-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

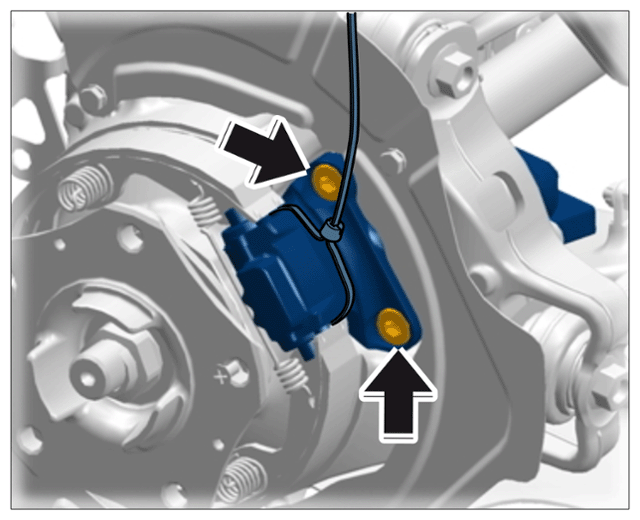

Loosening EPB actuator
- Turn the wheel hub so that the EPB actuator can be removed carefully > Removing EPB actuator
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

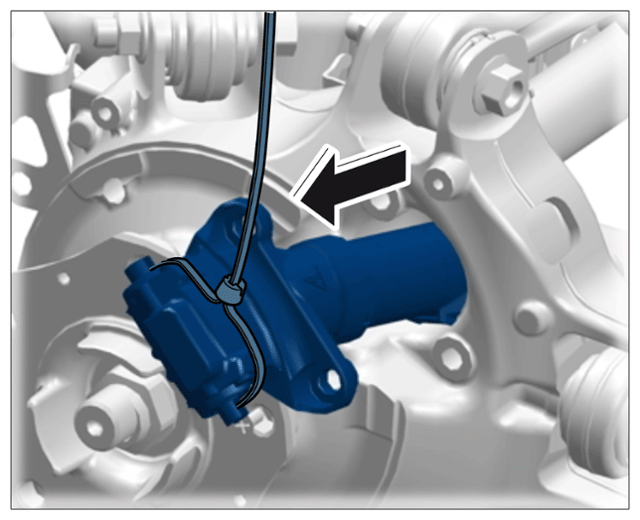

Removing EPB actuator
