Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Side strut to body | Hexagon-head bolt, M8 x 45/always replace bolts following removal | Initial tightening | 20 Nm (15 ftlb.) | ||
| Side strut to body | Hexagon-head bolt, M8 x 45/always replace bolts following removal | Final tightening | + 90° | ||
| Dome strut to body | Hexagon-head bolt, M10 x 80 with hexagon nut/always replace bolt and nut following removal | Initial tightening | 50 Nm (37 ftlb.) | ||
| Dome strut to body | Hexagon-head bolt, M10 x 80 with hexagon nut/always replace bolt and nut following removal | Final tightening | + 90° | ||

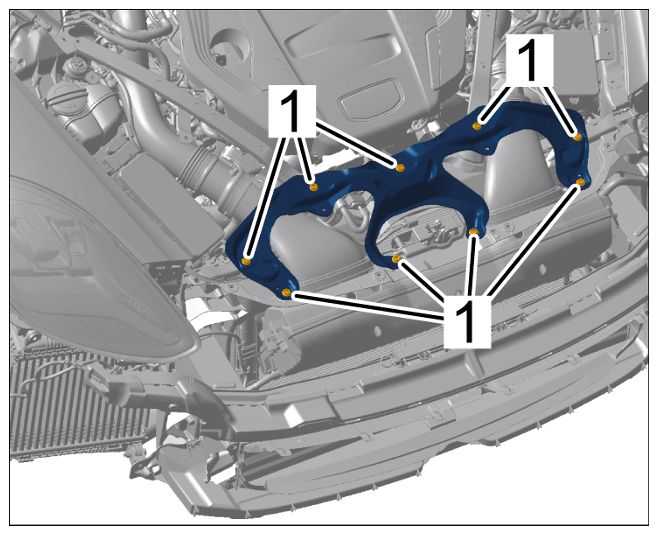

| Screw securing reinforcement to module carrier | Item 1 | Tightening torque | 20 Nm (15 ftlb.) | ||
|
Reinforcement on module carrier |
|||||
