Removing Strut (Dome Strut)

WARNING: This page is about a different variant/trim than selected.

Unclip sensor -1- and hoses -3- from holder -2-Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

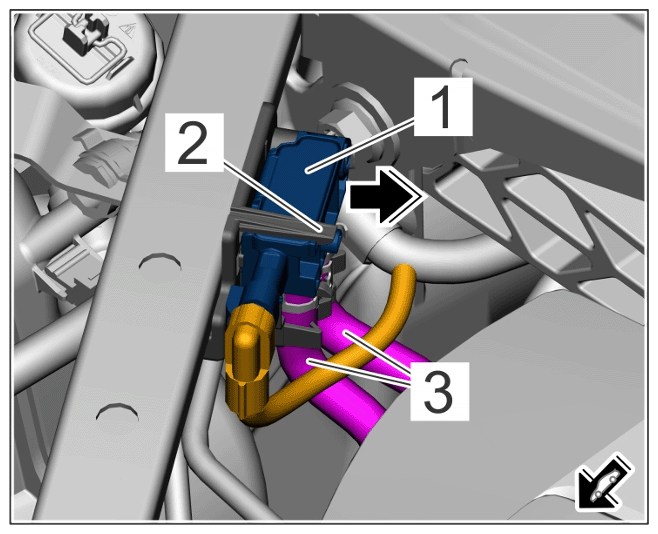

Sensor on side strut
Loosen side struts -4- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

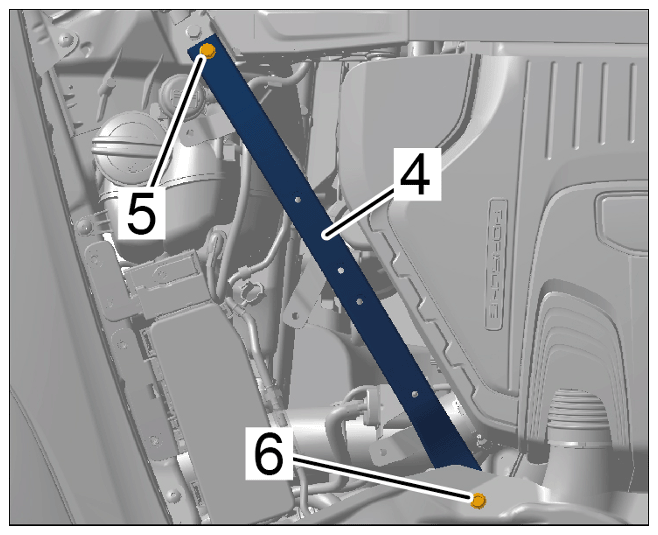

Mounting for side strut
1. 2.1 Unscrew screws -5 and 6- . Replace screws -5- .
2. 2.2 Lay the struts -4- to the side so that the bolts of the strut are accessible.
Removing strut (dome strut) -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

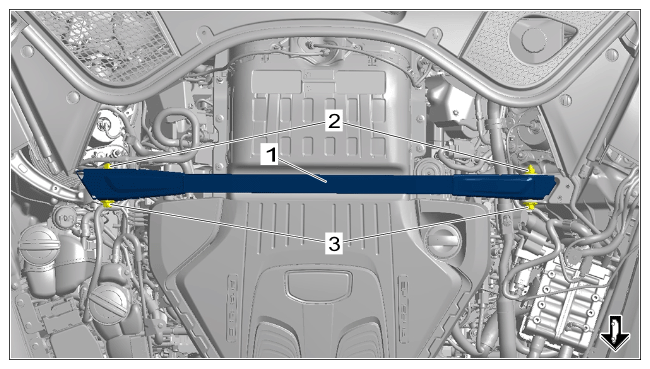

Strut (dome strut)
1. 3.1 Unscrew nut -2- and counter at screw -3- at the same time.
2. 3.2 Remove screws -3- , replace nut and screw.
3. 3.3 Remove strut (dome strut) -1- by pulling it upwards.
