Installing Strut (Dome Strut)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

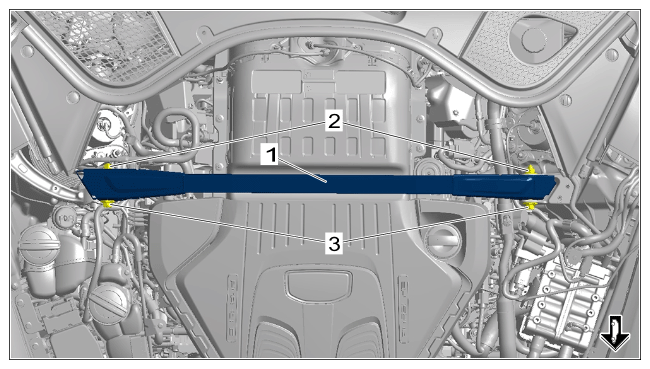

Strut (dome strut)

1. 1.1 Position strut (dome strut) -1-  .
2. 1.2 Insert new  screws -3-  .
3. 1.3 Fit and tighten new  nuts -2-  holding them against the screws -3-  .

   > Initial tightening 50 (37m) Nm.

   > Final tightening + 90°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

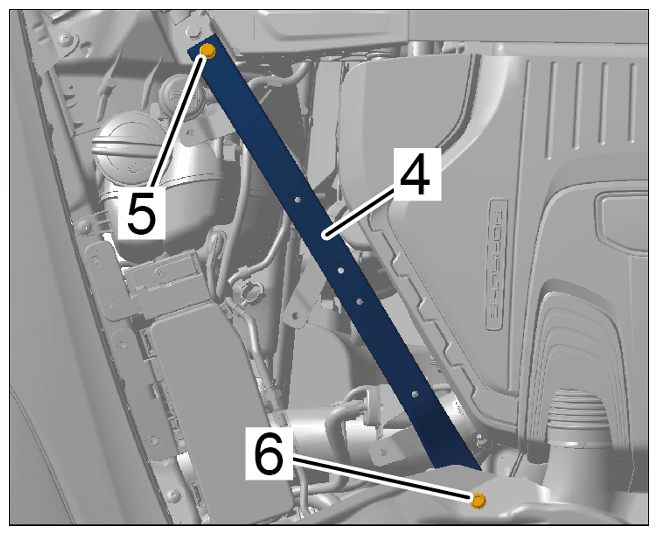

Mounting for side strut

1. 2.1 Tighten new screws -5-  > Initial tightening 20 Nm (15 ftlb.)   > Final tightening + 90°
2. 2.2 Tighten -6-  screws > Tightening torque 20 (1 5 ftlb.) Nm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

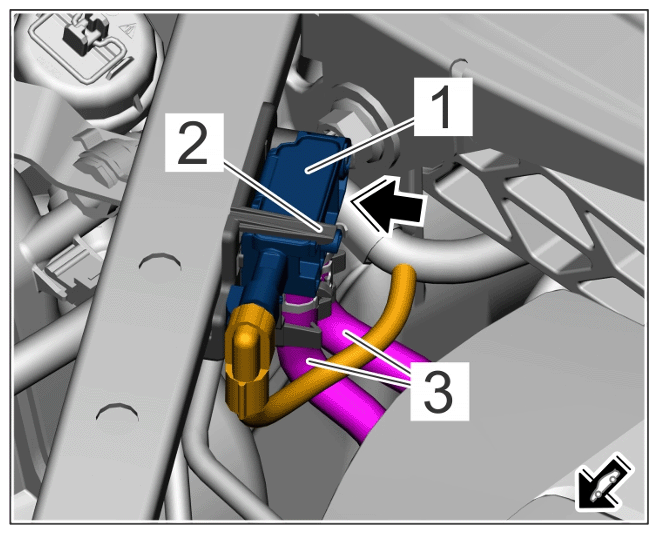

Sensor on side strut
