Installing Strut

WARNING: This page is about a different variant/trim than selected.

Installation is performed in reverse order. Observe specified tightening torques:

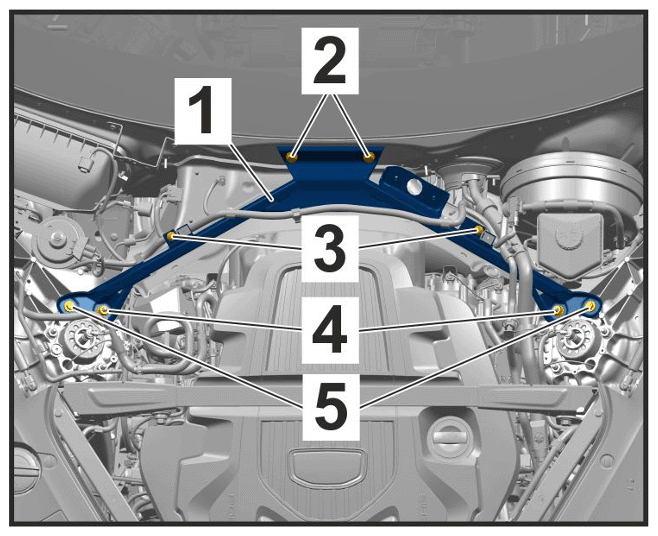

1.1 Secure the strut -1- .

A-strut to cowl panel -2- : > Tightening torque 40 Nm (30 ftlb.)

A-strut to cross panel -3- : > Tightening torque 8 (6flb.) Nm

Spring strut with A-strut to body -4- : > Initial tightening 40 Nm (30 ftlb.) > Final tightening + 45°

A-strut to body -5- : > Initial tightening 20 (1 5 ftlb.) Nm > Final tightening 90°

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Strut mounting

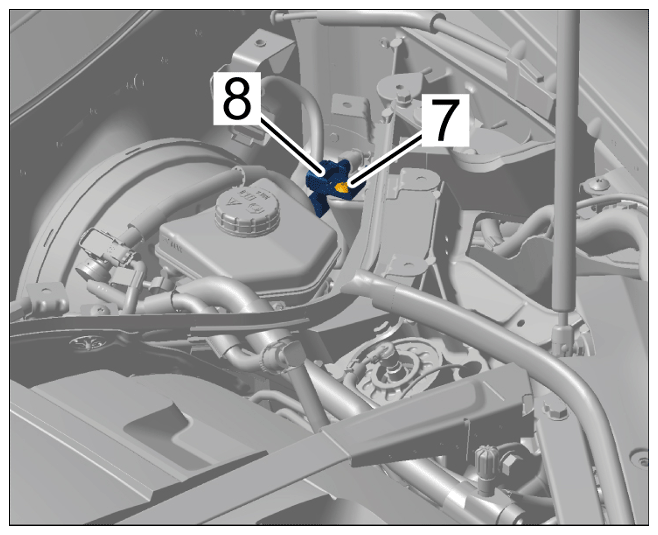

1.2 Upper part of plenum panel at the side to spring strut mount: > Tightening torque 8 Nm (6 ftlb.) +/- 15 %

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Side plenum panel to spring strut mount

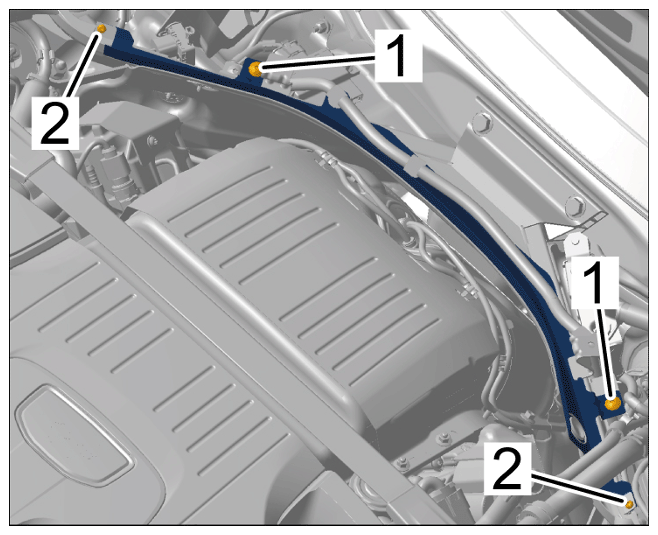

1.3 Screw securing upper part of plenum panel at the centre to A-strut -1- : > Tightening torque 8 Nm (6 ftlb.) +/-15 %
Upper part of plenum panel at the side to centre plenum panel -2- : > Tightening torque 4 Nm (3 ftlb.) +/- 15 %

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Screws for A-strut
