Technical Values

WARNING: This page is about a different variant/trim than selected.

*Location	*Description	*Type	*Basic value
Spring strut to lower trailing arm	Item 2: Hexagon-head bolt, M12 x 1.5 x 90 and hexagon nut/always replace bolts and nuts following removal!	Initial tightening	90 Nm (67 ftlb.)

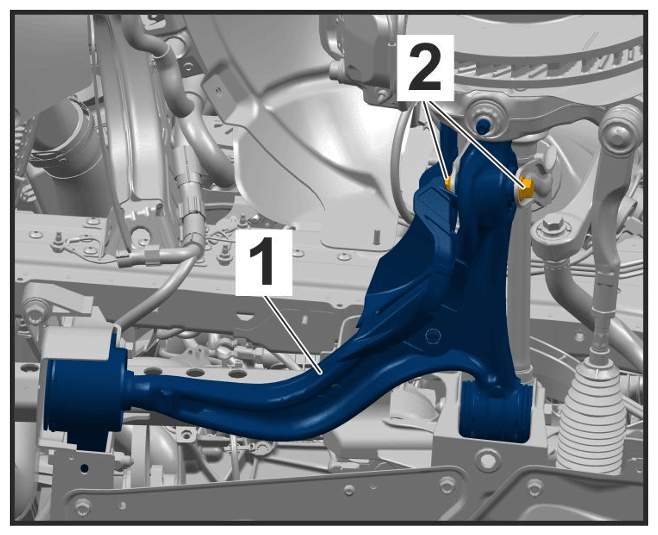

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for spring strut on lower trailing arm
Spring strut to lower trailing arm	Item 2: Hexagon-head bolt, M12 x 1.5 x 90 and hexagon nut/always replace bolts and nuts following removal!	Final tightening	+ 120°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for spring strut on lower trailing arm
Spring strut to body	Item 4: Hexagon nut, M10/always replace nuts following removal!	Initial tightening	40 Nm (30 ftlb.)

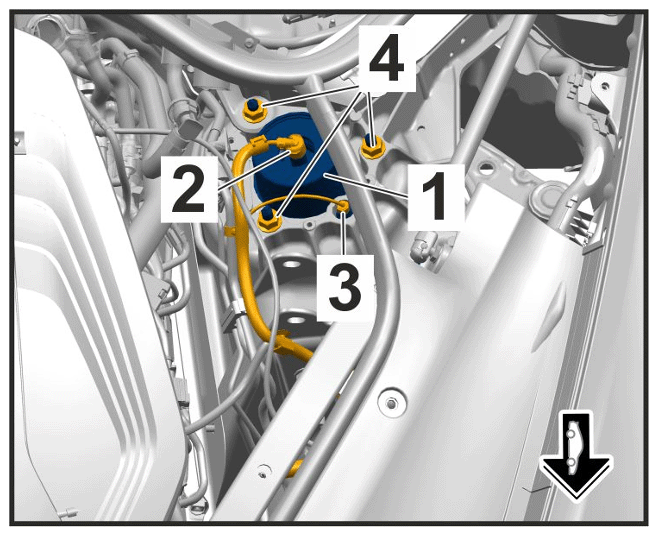

Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for air-spring strut, top
Spring strut to body	Item 4: Hexagon nut, M10/always replace nuts following removal!	Final tightening	+ 45°
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Mounting for air-spring strut, top
