Subsequent Work: Reworking
WARNING: This page is about a different variant/trim than selected.
WARNING:
Wheel bearing housing raised incorrectly
- Risk of crushing
- Risk of damage to components
→ Wear personal protective gear.
→ Do not raise the wheel suspension higher than the normal vehicle position (vehicle resting n wheels).
Information
Threaded joints must only be tightened in zero position to prevent warping in the bearings.
- Only for the right drive shaft:
Install front axle support (rear section).
> 400819 Remove and install front axle support - section on "INSTALLING "
- Installing wheel bearing housing.
- Installing front underbody cover.
> WM, 519219 REMOVING AND INSTALLING COVER FOR FRONT UNDERBODY
- Install header tank panel cover.
> Refer tp the appropriate Service Information to Remove and install header tank panel cover.
- Raise the wheel bearing housing as far as required using a jack (e.g > VAS 6931 - engine and gearbox jack

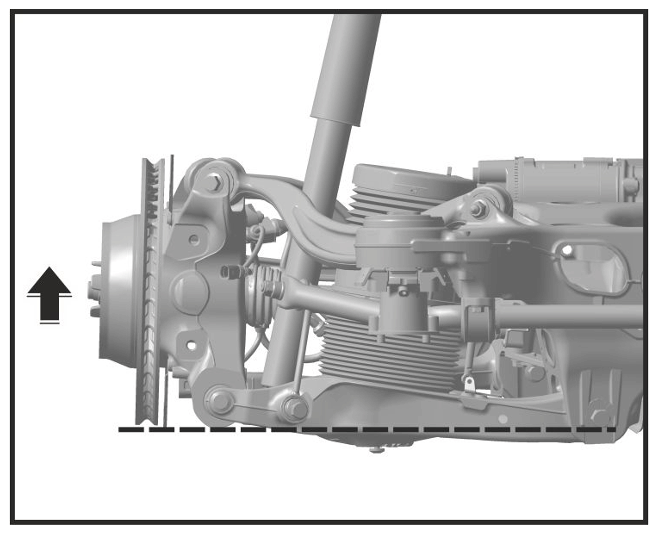

) until the lower trailing arm is horizontal. Zero position (shown on rear axle as an example)
Zero position (shown on rear axle as an example)
- Tighten bolts securing spring strut to lower trailing arm -2-.
> Initial tightening 90 Nm (67 ftlb.)
> Final tightening + 120°
Mounting for spring strut on lower trailing arm
