Removing Front Spring Strut

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

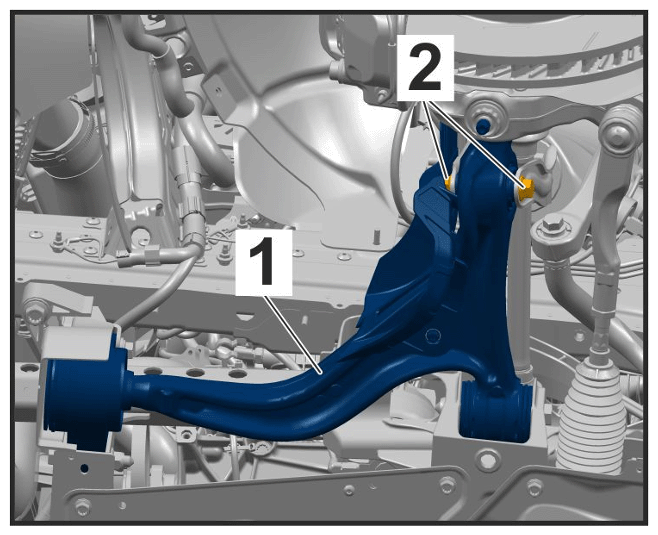

Mounting for spring strut on lower trailing arm

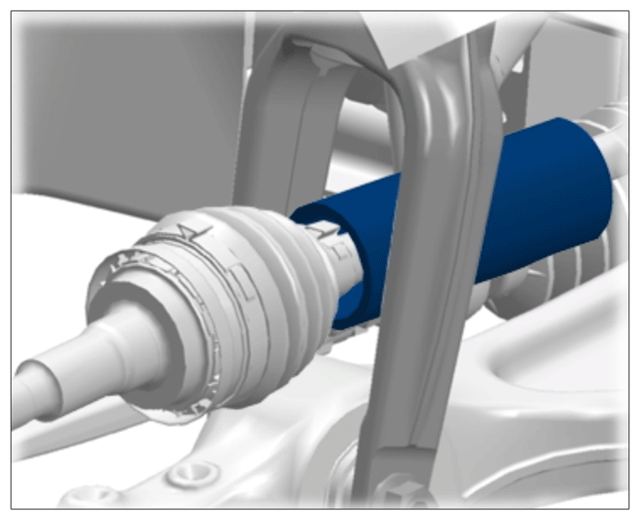

1. 1.1 On vehicles with all-wheel drive, fit protective tube (shop-made) on the drive shaft to prevent damage due to contact with the spring strut forks. Protective tube (example)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Protective tube (example)

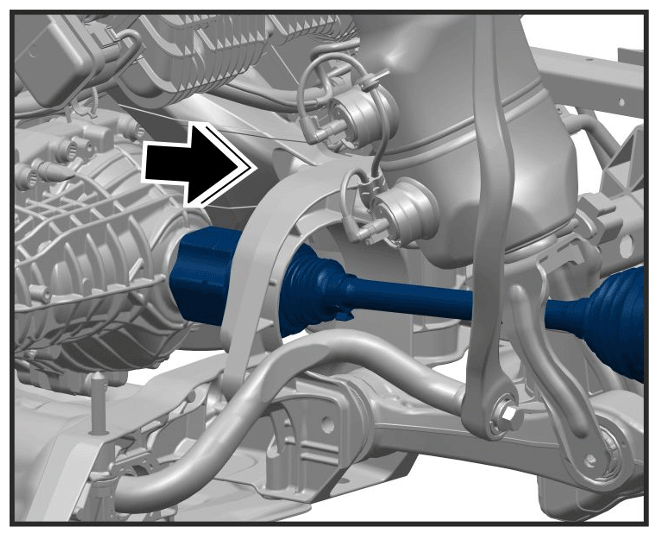

2. 1.2 Remove bolts -2-  .

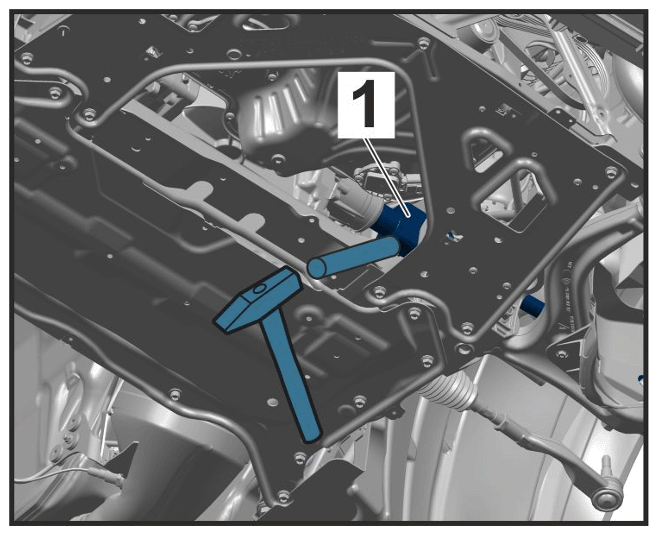

1. 2.1 Only for left drive shaft:  Tap drive shaft -1-  out of the front final drive using a hammer and aluminium or brass mandrel (fit mandrel on the tripod housing) > Tapping left drive shaft out of front final drive

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Tapping left drive shaft out of front final drive

2. 2.2 Only for right drive shaft:  Pull drive shaft out of the front final drive using a tyre iron.

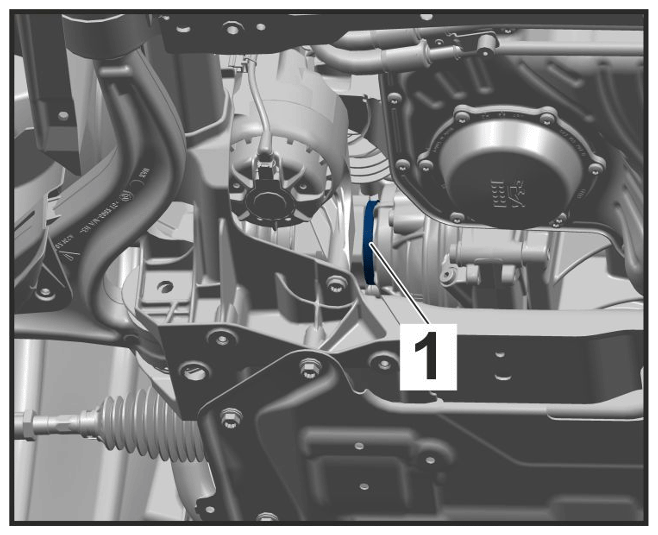

   1. 2.2.1 Break off protective ring -1-  using side cutters.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Protective ring on drive shaft

   2. 2.2.2 Pull out drive shaft as far as required at the tripod to make a gap for fitting the tyre iron.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Pulling out drive shaft with your hand

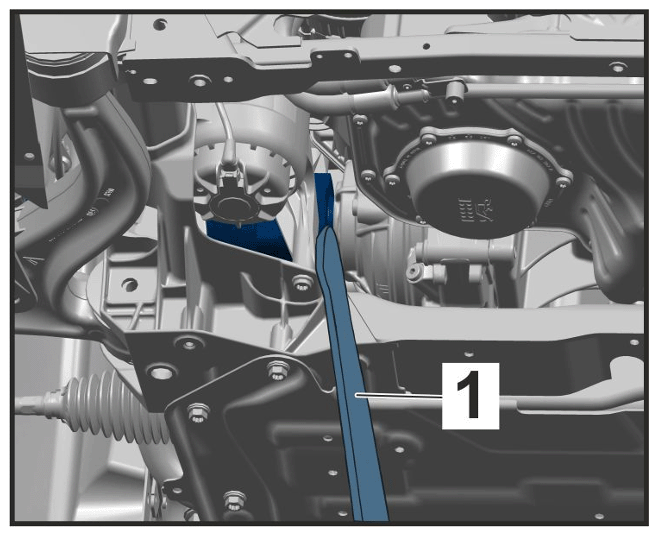

   3. 2.2.3 Carefully fit the tyre iron -1-  at the gap between the front final drive and tripod and pull out the drive shaft.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Pulling out drive shaft using a tyre iron

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

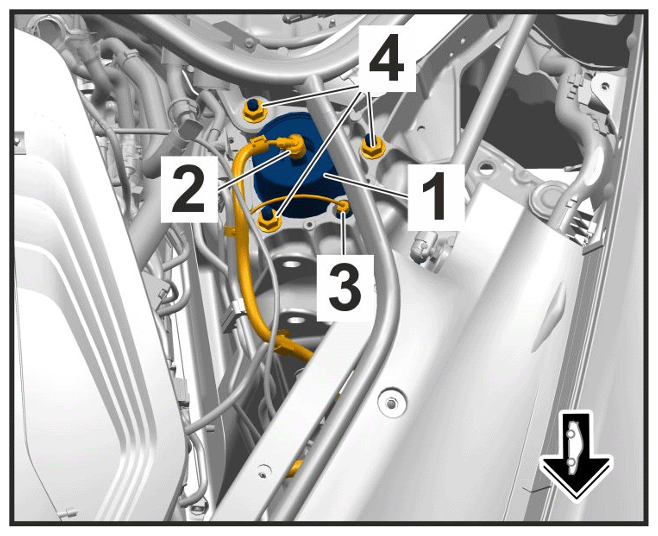

Upper spring strut mounting (shown on air-spring strut as an example)

1. 3.1 Release and disconnect electric plug connection -2-  .
2. 3.2 Get another person to help by holding the spring strut.
3. 3.3 Unscrew nuts -4-  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

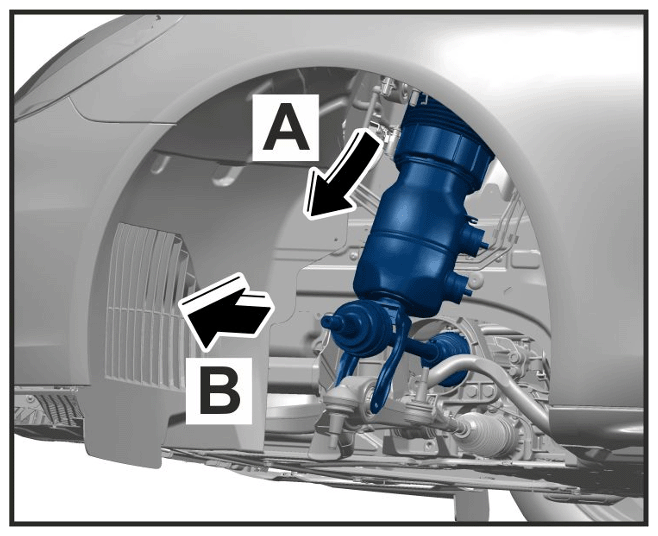

Removing spring strut and drive shaft (shown on air-spring strut as an example)
