Installing Front Spring Strut

WARNING: This page is about a different variant/trim than selected.
  1. Only for right drive shaft:  Replace shaft sealing ring in the final drive.

    > 395955 REPLACING SEALING RING FOR ALL-WHEEL DRIVE FLANGE SHAFT

  2. Only for right drive shaft:  Replace circlip -1-  on the drive shaft.

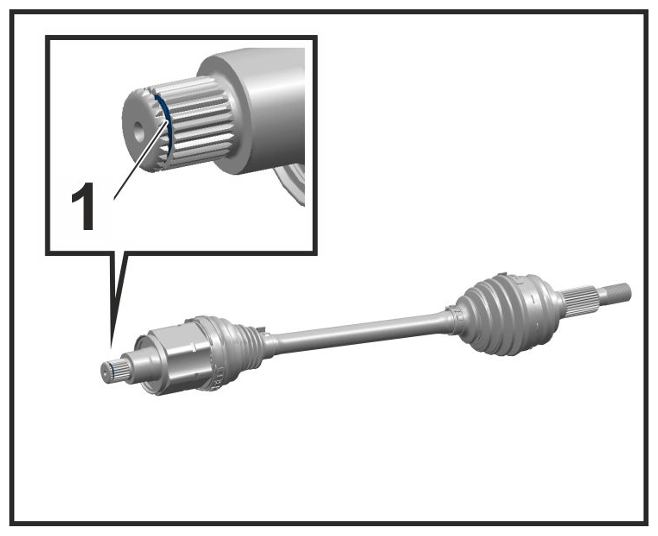

    G15857672Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Circlip

  3. Only for left drive shaft:  Replace circlip -1-  and sealing ring -2-  on the front final drive shaft.

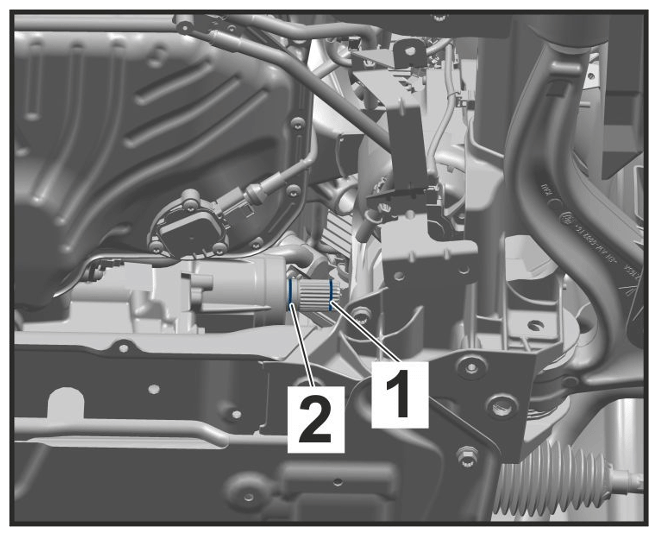

    G15857673Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Circlip and sealing ring

    Information

    • Molub Alloy Paste TA can be ordered using the Porsche Electronic Parts Information (PET).
  4. Only for left drive shaft:  Grease splines on the drive shaft with Molub Alloy Paste TA > Greasing splines

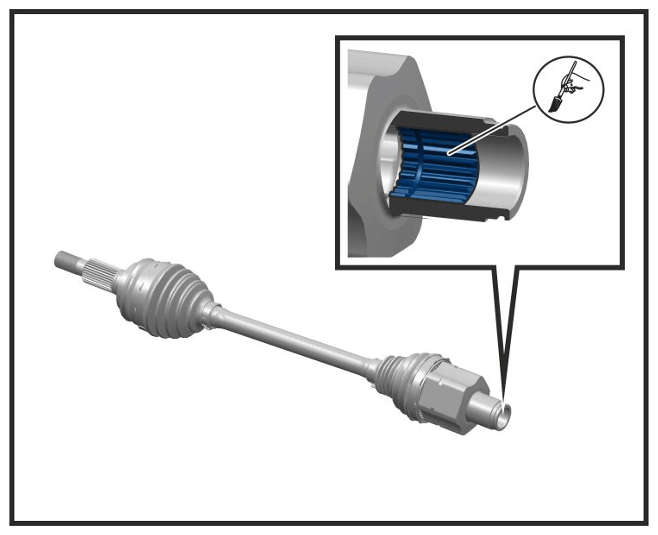

    G15857674Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Greasing splines

  5. Move spring strut together with drive shaft into installation position -arrow A/B-  .

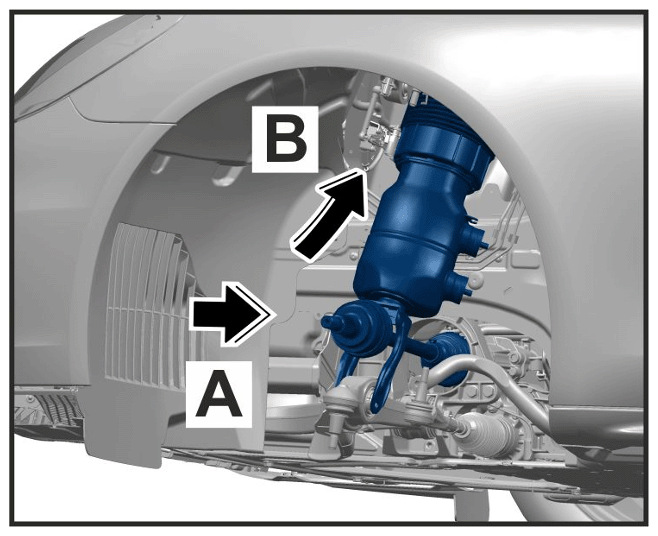

    G15857675Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Moving spring strut with drive shaft into installation position (shown on air-spring strut as an example)

    Information

    • Make sure not to damage the sealing ring when guiding the drive shaft into the final drive.
    • Check that the profile splines on the drive shaft and transmission side interlock securely!
    • The use of an impact tool is not permitted.
    1. 5.1 Fit drive shaft into the front final drive with a quick jerking movement.
  6. Fit upper spring strut -1-  .

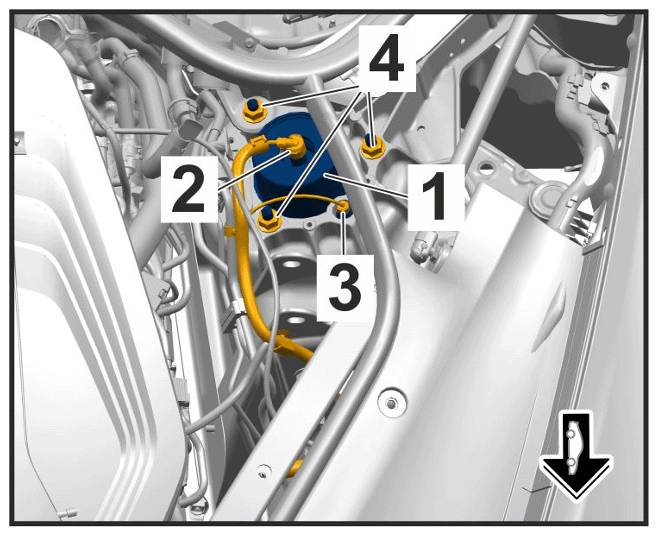

    G15857676Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Upper spring strut mounting (shown on air-spring strut as an example)

    1. 6.1 Get another person to help by holding the spring strut and drive shaft.
    2. 6.2 Tighten nuts -4-  > Initial tightening 40 Nm (30 ftlb.)   > Final tightening + 45°
    3. 6.3 Connect and lock electric plug connection -2-  .
  7. Fit spring strut on lower trailing arm -1-  .

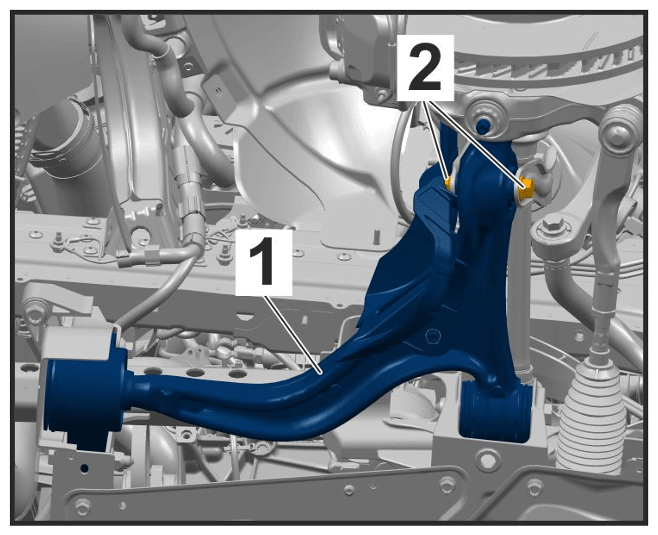

    G15857677Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Mounting for spring strut on lower trailing arm

    1. 7.1 Install bolts -2-  (do not tighten!).
    2. 7.2 Remove protective tube (shop-made) from the drive shaft.
