Technical Values
WARNING: This page is about a different variant/trim than selected.
| *Location | *Description | *Type | *Basic value | *Tolerance 1 | *Tolerance 2 |
|---|---|---|---|---|---|
| Mounting anti-roll bar to body | M12 x 1.5 x 90 thread/always replace bolts following removal. | Initial tightening | 70 Nm (51.6 ftlb.) | ||
| Mounting anti-roll bar to body | M12 x 1.5 x 90 thread/always replace bolts following removal. | Final tightening | + 180° | ||
| Strut with mounting anti-roll bar to body | M12 x 1.5 x 90 thread/always replace bolts following removal. | Initial tightening | 70 Nm (51.6 ftlb.) | ||
| Strut with mounting anti-roll bar to body | M12 x 1.5 x 90 thread/always replace bolts following removal. | Final tightening | + 180° | ||
| Strut to body | Hexagon-head bolt, M10 x 25/always replace bolts following removal. | Initial tightening | 50 Nm (36.9 ftlb.) | ||
| Strut to body | Hexagon-head bolt, M10 x 25/always replace bolts following removal. | Final tightening | + 45° | ||
| Mounting anti-roll bar to front axle carrier (side) | Hexagon-head bolt, M10 x 35/always replace bolts following removal. | Initial tightening | 50 Nm (36.9 ftlb.) | ||
| Mounting anti-roll bar to front axle carrier (side) | Hexagon-head bolt, M10 x 35/always replace bolts following removal. | Final tightening | + 30° | ||
| Mounting anti-roll bar to power-steering gear | Hexagon-head bolt, M8 x 80 with hexagon nut/always replace bolts and nuts following removal. | Initial tightening | 20 Nm (14.8 ftlb.) | ||
| Mounting anti-roll bar to power-steering gear | Hexagon-head bolt, M8 x 80 with hexagon nut/always replace bolts and nuts following removal. | Final tightening | + 180° | ||
| Mounting anti-roll bar to front axle carrier (front) | Round head screw, M8 x 20 with hexagon nut/always replace screws following removal. | Initial tightening | 20 Nm (14.8 ftlb.) | ||
| Anti-roll bar mount to front axle carrier (front) | Round head screw, M8 x 20 with hexagon nut/always replace screws following removal. | Final tightening | + 30° | ||

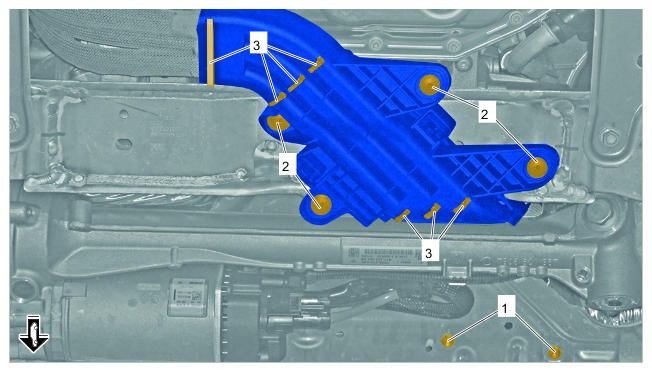

| Fasten holder for high-voltage lines to mounting anti-roll bar | Item 2: Hexagon-head bolt M6 x 16 | Tightening torque | 8 Nm (5.9 ftlb.) | ||
|
Holder for high-voltage lines on mounting anti-roll bar |
|||||
