Installing Anti-Roll Bar Mount

WARNING: This page is about a different variant/trim than selected.
  1. Carefully move anti-roll bar mount -1-  into installation position -arrow A-  .

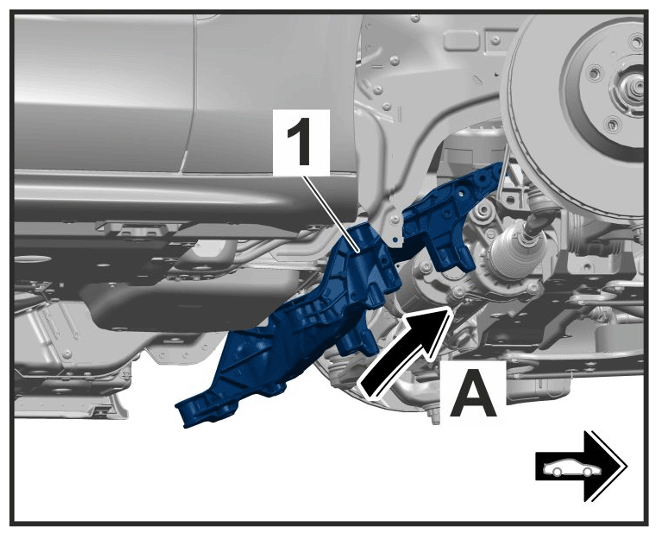

    G15857651Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Moving anti-roll bar mount into installation position

  2. Only for e-Hybrid vehicles:  Secure electric line for steering -1-  and electric line for transmission -2-  at -items A and B-  on the anti-roll bar mount -3-  .

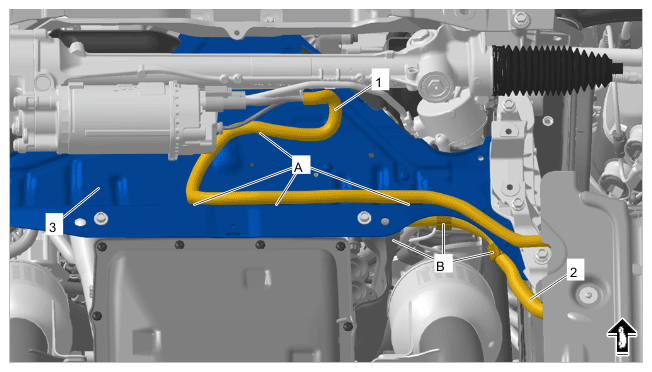

    G15857652Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric lines on anti-roll bar mount on e-Hybrid vehicle

  3. Not for e-Hybrid vehicles:  Secure electric line for steering -1-  and electric line for transmission -2-  at -items A and B-  on the anti-roll bar mount -3-  .

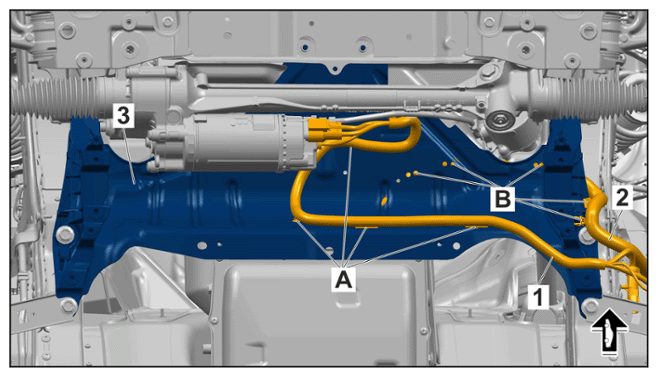

    G15857653Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric lines on anti-roll bar mount

  4. Secure anti-roll bar mount -1-  at the front and rear.
    1. 4.1 Tighten screws -3-  on the body > Initial tightening 70 Nm (51.6 ftlb.)   > Final tightening + 180°
    2. 4.2 Tighten screws -2-  on the front-axle carrier > Initial tightening 20 Nm (14.8 ftlb)  > Final tightening + 30°

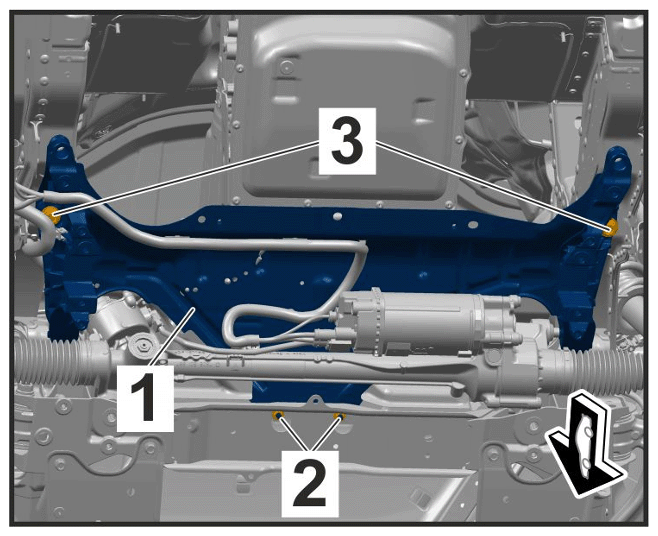

    G15857654Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Anti-roll bar mount at front and rear

  5. Tighten anti-roll bar mount -1-  at the sides.
    1. 5.1 Only at the left (RHD vehicles)/only at the right (LHD vehicles):  Tighten screw -3-  and counter at the nut on the steering gear at the same time > Initial tightening 20 Nm (14.8 ftlb.)   > Final tightening + 180°
    2. 5.2 Tighten screws -2-  on the front-axle carrier on both sides of the vehicle > Initial tightening 50 Nm (36.9 ftlb.)  > Final tightening + 30°

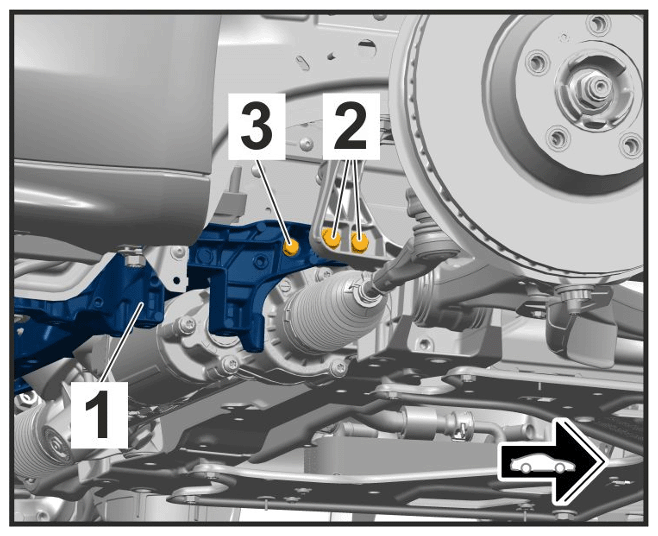

    G15857655Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Anti-roll bar mount at the sides

  6. Install strut -1-  on both sides of the vehicle.
    1. 6.1 Tighten screw -2-  > Initial tightening 70 Nm (51.6 ftlb.)   > Final tightening + 180°
    2. 6.2 Tighten screw -3-  > Initial tightening 50 Nm (36.9 ftlb.)   > Final tightening + 45°

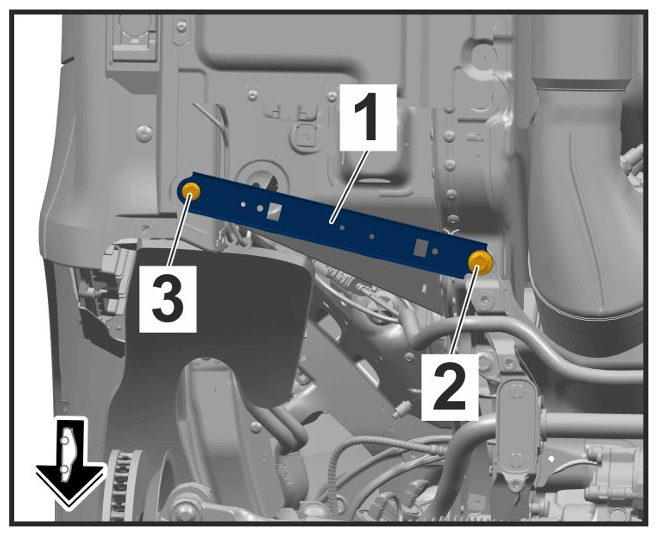

    G15857656Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Strut mounting

  7. Secure electric line for steering -1-  and electric line for transmission -2-  at -items A and B-  on the anti-roll bar mount -3-  .
    G15857657Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric lines on anti-roll bar mount

  8. Only for e-Hybrid vehicles:  Clip cable holder for high-voltage lines -1-  into anti-roll bar mount.

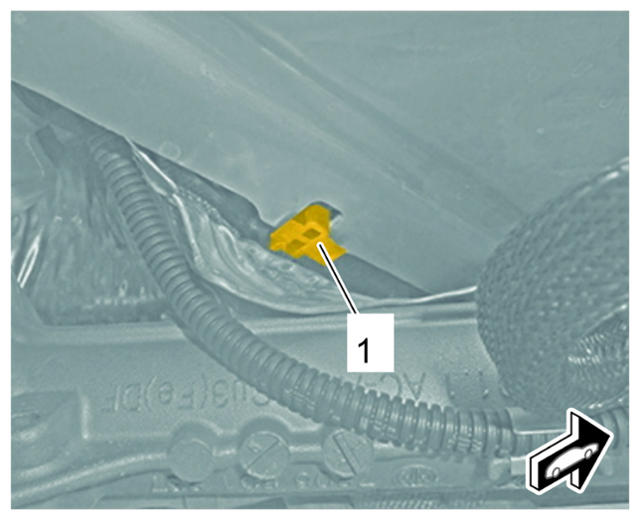

    G15857658Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cable holder for high-voltage lines on anti-roll bar mount

  9. Only for e-Hybrid vehicles:  Secure bracket for high-voltage lines.
    1. 9.1 Install bracket for high-voltage lines on front-axle carrier.
      1. 9.1.1 Fit tie-wrap and position bracket for high-voltage lines.
      2. 9.1.2 Clip in upper part of bracket for high-voltage lines.
      3. 9.1.3 Tighten tie-wraps.
      4. 9.1.4 Install expansion rivets.
    2. 9.2 Tighten screws for bracket for high-voltage lines on anti-roll bar mount to > Tightening torque 8 Nm (5.9 ftlb.)
